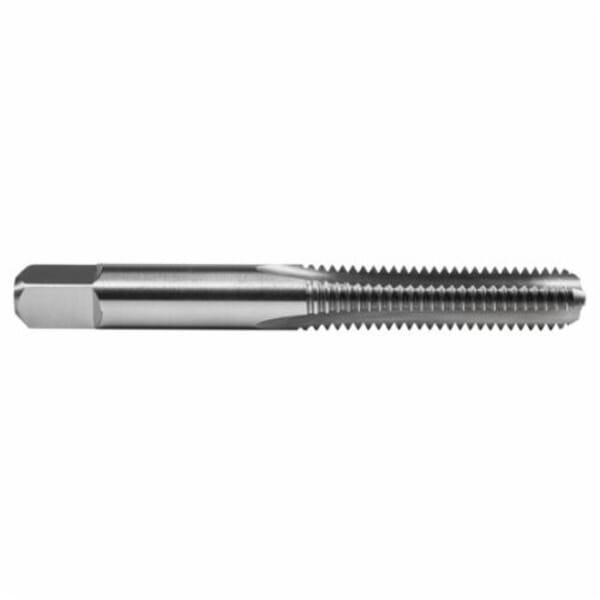

Name: Union Butterfield 6006887 1572 Straight Flute STI Tap, #4-40 Thread, 3 Flutes, 3B/H2 Class of Fit, Plug Chamfer, Right Hand Cutting, UNC Thread
Brand: Dormer Pramet
SKU: 3791983
Availability: OutOfStock

Dormer Pramet

Union Butterfield 6006887 1572 Straight Flute STI Tap, #4-40 Thread, 3 Flutes, 3B/H2 Class of Fit, Plug Chamfer, Right Hand Cutting, UNC Thread

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Union Butterfield 6006887 1572 Straight Flute STI Tap, #4-40 Thread, 3 Flutes, 3B/H2 Class of Fit, Plug Chamfer, Right Hand Cutting, UNC Thread

ManufacturerUnion Butterfield

Part #724810419

MFG #6006887

UPC #698464021183

Union Butterfield STI Tap, Straight Flute, Series: 1572, Measurement System: Imperial, #4-40 Thread, UNC Thread Standard, 11/16 in Thread Length, 2 in Overall Length, 3 Flutes, Plug Chamfer, Right Hand Cutting Direction, Class of Fit: 3B/H2, 0.141 in Shank Diameter, #43 Tap Drill, 0.11 in Square, HSS, Bright

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Chamfer Type: Plug

Class of Fit: 3B/H2

Country of Origin: US

Cutting Direction: Right Hand

Finish/Coating: Bright

Manufacturer Name: Dormer Pramet

Material: HSS

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2 in

Series: 1572

Shank Diameter: 0.141 in

Square Size: 0.11 in

Tap Drill Size: #43

Thread Length: 11/16 in

Thread Size: #4-40

Thread Standard: UNC

Type: Straight Flute

Designed for use in aluminum, magnesium, and other nonferrous materials where taps of this type are most commonly used
Taps suitable for other materials can be furnished on request
STI taps are dimensionally oversize and utilize a larger tap drill size so that the thread they produce will accept a helical coil wire screw thread insert of the same nominal size and pitch
For a particular size and pitch the lower H-Limit number is suggested for class 2B and 3B threads, while the higher H-Limit is suggested for class 2B
Through or blind hole

Through or Blind Hole Applications

ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Catalog

Manufacturer Name: Dormer Pramet

Chamfer Type: Plug

Class of Fit: 3B/H2

Country of Origin: US

Cutting Direction: Right Hand

Finish/Coating: Bright

Manufacturer Name: Dormer Pramet

Material: HSS

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2 in

Series: 1572

Shank Diameter: 0.141 in

Square Size: 0.11 in

Tap Drill Size: #43

Thread Length: 11/16 in

Thread Size: #4-40

Thread Standard: UNC

Type: Straight Flute

Designed for use in aluminum, magnesium, and other nonferrous materials where taps of this type are most commonly used
Taps suitable for other materials can be furnished on request
STI taps are dimensionally oversize and utilize a larger tap drill size so that the thread they produce will accept a helical coil wire screw thread insert of the same nominal size and pitch
For a particular size and pitch the lower H-Limit number is suggested for class 2B and 3B threads, while the higher H-Limit is suggested for class 2B
Through or blind hole

Through or Blind Hole Applications

ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Catalog
