3M 7100138818 Fire Barrier Cast-In Device, For Use With Plastic Pipes, 3 hr Fire Rating
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact Us3M 7100138818 Fire Barrier Cast-In Device, For Use With Plastic Pipes, 3 hr Fire Rating
Manufacturer3M
Part #111516539
MFG #7100138818
UPC #051115165399
3M, 7100138818, Cast-In Device, Fire Barrier, For Pipe Size: 6 in, For Use With: Plastic Pipes, Fire Rating: 3 hr
$99.37
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â 3MCountry of Origin:Â USFire Rating:Â 3 hrFor Pipe Size:Â 6 inManufacturer Name:Â 3MMaterial:Â PlasticSuitable For Use With:Â Plastic PipesType:Â Fire Barrier
- Creates an opening through which mechanical, electrical or plumbing penetrants can be routed after the slab is cured and forms are removed
- Provides up to 3-hour fire protection

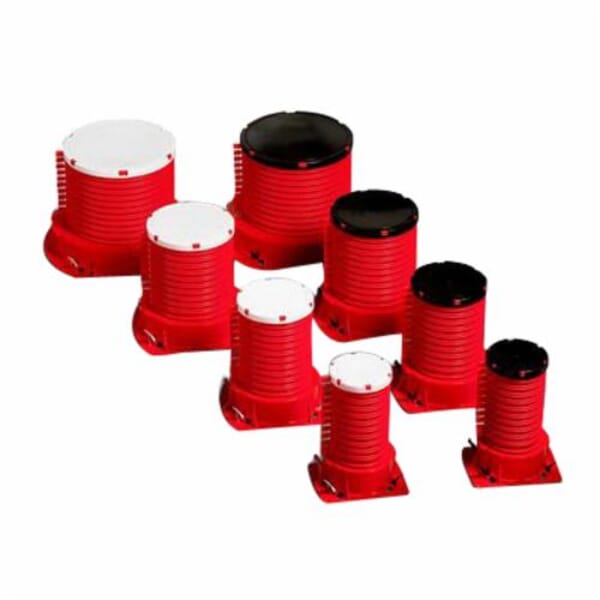

- Models for metallic (black cap) and non-metallic (white cap) penetrating items
- Rugged one-piece design to withstand every-day bumps, kicks and hard knocks of the construction process
- Eliminates time and expense of core drilling holes in concrete
- Tear strips allow installers to easily adjust height for various concrete thicknesses
- Installs securely by attaching directly to forms and floor decking
- ASTM E 814|UL 1479
- Designed to provide one-step firestopping for penetrations through fire-rated concrete floor assemblies, 3M Fire Barrier Cast-In Devices for Plastic Pipes are a proven alternative to core drilling holes. Installers simply attach the devices directly to floor decking, pour concrete around them and route penetrants after the concrete cures. Heights are adjustable in half-inch (13 mm) increments.
- Manufacturer Name:Â 3MCountry of Origin:Â USFire Rating:Â 3 hrFor Pipe Size:Â 6 inManufacturer Name:Â 3MMaterial:Â PlasticSuitable For Use With:Â Plastic PipesType:Â Fire Barrier
- Creates an opening through which mechanical, electrical or plumbing penetrants can be routed after the slab is cured and forms are removed
- Provides up to 3-hour fire protection
- Models for metallic (black cap) and non-metallic (white cap) penetrating items
- Rugged one-piece design to withstand every-day bumps, kicks and hard knocks of the construction process
- Eliminates time and expense of core drilling holes in concrete
- Tear strips allow installers to easily adjust height for various concrete thicknesses
- Installs securely by attaching directly to forms and floor decking
- ASTM E 814|UL 1479
- Designed to provide one-step firestopping for penetrations through fire-rated concrete floor assemblies, 3M Fire Barrier Cast-In Devices for Plastic Pipes are a proven alternative to core drilling holes. Installers simply attach the devices directly to floor decking, pour concrete around them and route penetrants after the concrete cures. Heights are adjustable in half-inch (13 mm) increments.
