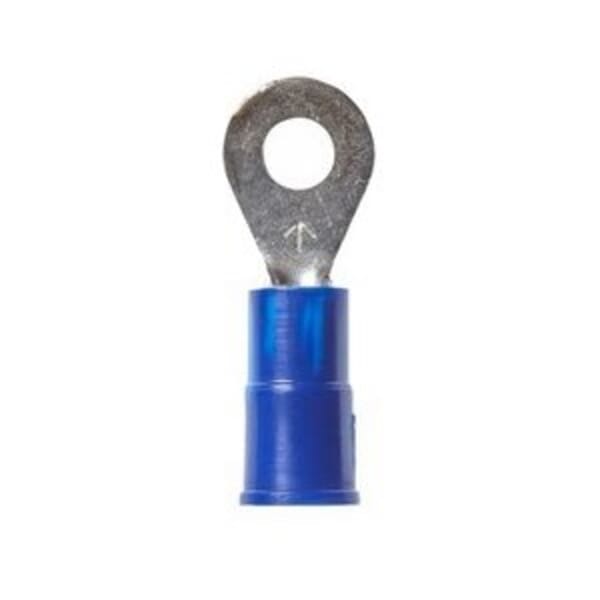

Highland 7000133678 Insulated Terminal, 16 to 14 AWG Conductor, 0.8 in L, Butted Seam Barrel, Vinyl, Blue

ManufacturerHighland

Part #400770332

MFG #7000133678

UPC #051128600412

Highland, 7000133678, Terminal, Insulated, 16 to 14 AWG Conductor, #6 Stud, 0.8 in Length, Butted Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600/1000 VAC, Specifications: 0.17 in Dia Max Insulation, 0.22 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Blue

$10.40

/ BG

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: 3M

Barrel Size: 0.09 in ID x 0.25 in L

Barrel Type: Butted Seam

Color: Blue

Conductor Size: 16 to 14 AWG

Country of Origin: US

Finish: Tin Plated

Length: 0.8 in

Manufacturer Name: 3M

Material: Vinyl

Specifications: 0.17 in Dia Max Insulation, 0.22 in Clearance

Stud Size: #6

Temperature Rating: -40 to 221 deg F

Tongue Size: 0.25 in W x 0.03 in THK

Tongue Type: Ring

Type: Insulated Standard

Voltage Rating: 600/1000 VAC

3M Highland Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

UL Recognized File No. LR22190|CSA Certified|RoHS Compliant|UL File No. E23438

Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
Crimp termination
Free hanging (in-line) mounting
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Standard-style ring tongue fits around the stud
Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
