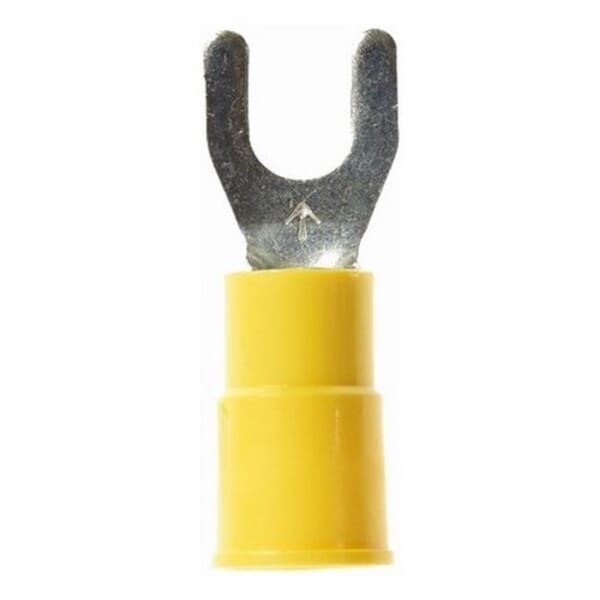

Highland 7010321019 Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.03 in L, Butted Seam Barrel, Vinyl, Yellow

ManufacturerHighland

Part #112860009

MFG #7010321019

UPC #051128600092

Highland, 7010321019, Fork Terminal, Insulated, Stranded Copper Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.03 in Length, Butted Seam Barrel, 0.135 in ID x 0.25 in L Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600/1000 VAC, Specifications: 1/4 in Dia Max Insulation, 0.29 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Yellow

$12.99

/ BG

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: 3M

Barrel Size: 0.135 in ID x 0.25 in L

Barrel Type: Butted Seam

Color: Yellow

Conductor Size: 12 to 10 AWG

Conductor Type: Stranded Copper

Country of Origin: US

Finish: Tin Plated

Length: 1.03 in

Manufacturer Name: 3M

Material: Vinyl

Specifications: 1/4 in Dia Max Insulation, 0.29 in Clearance

Stud Size: #10

Temperature Rating: -40 to 221 deg F

Tongue Size: 0.38 in W x 0.04 in THK

Tongue Type: Fork

Type: Insulated Standard

Voltage Rating: 600/1000 VAC

Free hanging (in-line) mounting
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Wider-tongue design for use on free-standing studs

3M Highland Vinyl Insulated Butted Seam Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

RoHS Compliant|UL E23438|CSA File No.LR22190

SDS

Specification Sheet

Line Drawing

Manufacturer Name: 3M

Barrel Size: 0.135 in ID x 0.25 in L

Barrel Type: Butted Seam

Color: Yellow

Conductor Size: 12 to 10 AWG

Conductor Type: Stranded Copper

Country of Origin: US

Finish: Tin Plated

Length: 1.03 in

Manufacturer Name: 3M

Material: Vinyl

Specifications: 1/4 in Dia Max Insulation, 0.29 in Clearance

Stud Size: #10

Temperature Rating: -40 to 221 deg F

Tongue Size: 0.38 in W x 0.04 in THK

Tongue Type: Fork

Type: Insulated Standard

Voltage Rating: 600/1000 VAC

Free hanging (in-line) mounting
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Wider-tongue design for use on free-standing studs

3M Highland Vinyl Insulated Butted Seam Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

RoHS Compliant|UL E23438|CSA File No.LR22190

SDS

Specification Sheet

Line Drawing
