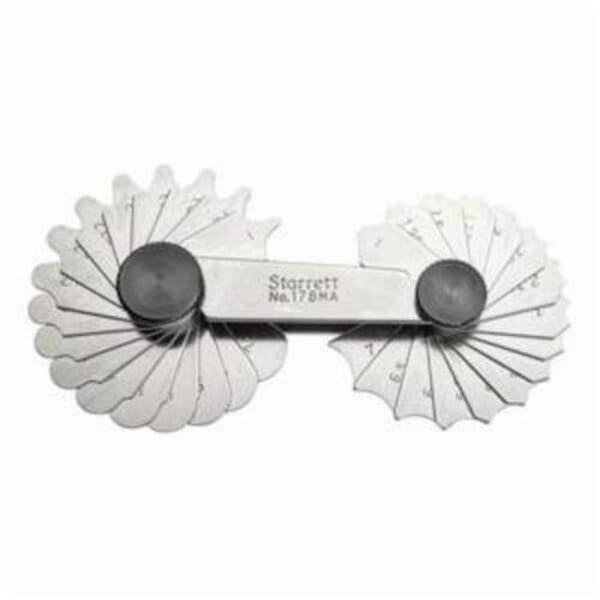

Starrett 178MA Fillet/Radius Gage With Locking Device, 1 to 3 mm, 34 Leaves, Stainless Steel

Product Line: Starrett

MFG #: 50665

Your Price

$150.00 / EA

Pack: 1/PK

Qty

Details

Part#530450665

Manufacturer:L.S. Starrett

UPC:049659506655

MFG #50665

Starrett Fillet/Radius Gage, Series: 178M, 1 to 3 mm Measuring, Graduations: 0.25 mm, 34 Leaves, Stainless Steel, 4-1/64 in L x 31/64 in W x 2-3/ 64 in H Dimensions

Specifications

Country of Origin

Dimensions

4-1/64 in L x 31/64 in W x 2-3/ 64 in H

Graduations

0.25 mm

Manufacturer Name

L.S. Starrett

Material

Stainless Steel

Measuring Range

1 to 3 mm

Number Of Leaves

Series

178M

Application

For tool and diemakers, machinists, screw machine operators, patternmakers and other mechanics to lay out and check radii of tools, dies and patterns

Item Features

Very useful for tool and diemakers, machinists, screw machine operators and patternmakers to lay out and check radii of tools, dies, and patterns
Made of nicely finished, high quality steel
1-7 mm concave and convex reading
Any one of the leaves can be securely locked in position by a locking device
Each gage has leaves for measuring both concave and convex radii, with each leaf stamped with the radius size
Millimeter system of measurement
1 - 3 mm, 3 - 7 mm measuring range
0.25 mm, 0.5 mm graduations

Standards

PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm

Documents

Full Engineering Drawing
