Starrett 823CZ Tubular Inside Micrometer, 4 to 24 in, Graduations: 0.001 in, Steel

Product Line: Starrett

MFG #: 823CZ

Your Price

$873.75 / EA

Pack: 1/PK

Qty

Details

Part#530453054

Manufacturer:L.S. Starrett

UPC:049659530544

MFG #823CZ

Starrett Inside Micrometer, Tubular, Series: 823, 4 to 24 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Interchangeable Anvil, Steel

Specifications

Accuracy

+/-0.0001 Mic Head, +/-0.0002 Rods in

Anvil Type

Interchangeable

Country of Origin

Graduations

0.001 in

Manufacturer Name

L.S. Starrett

Material

Steel

Measuring Range

4 to 24 in

Resolution

0.001 in

Series

823

Type

Tubular

Application

Internal Linear Measurements Such As Measuring Cylinders, Rings, Setting Calipers, Comparing Gages and Measuring Parallel Surfaces

Includes

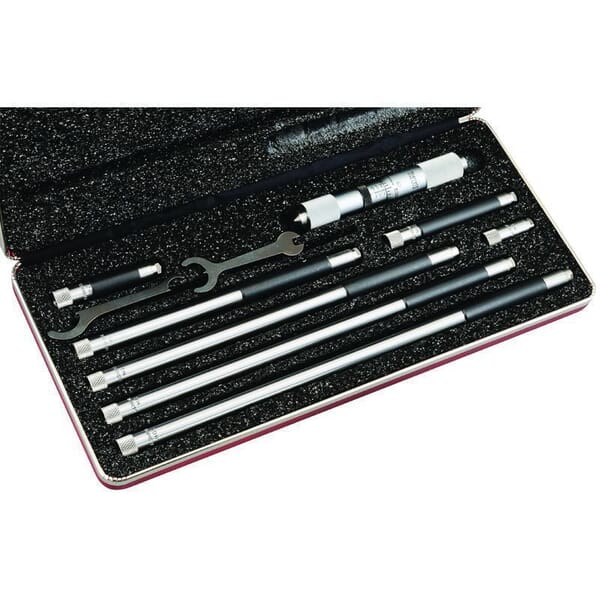

Micrometer Head, Stem Sub Assembly, 0.375-52 Nut, Adjusting Shell, Shell, Spindle, 0.157-40 Slot X 0.520 Long Screw, Binder Ring, 0.123 X 0.155 X 0.131 Pin, 0.132 X 0.156 X 0.094 X 0.012 X 2-1/2 Spring, (2) End Cap, Barrel Spring, 1 in Rod Sub Assembly, 2 in Rod Sub Assembly, 3 in Rod Sub Assembly, 6 in Rod Sub Assembly, 8 in Rod Sub Assembly, 9 in Rod Sub Assembly, 10 in Rod Sub Assembly, #3 Wrench, #232 1/2 Wrench and Steel/Vinyl Case Only

Item Features

Tubular rods are rigid and lightweight
5-1/2 in (140 mm) long handle furnished
Each rod is marked with length
Hardened and ground anvils
Interchangeable anvils
Quick reading figures
Extension rods are made of steel tubing
Friction thimble
Flat anvil
