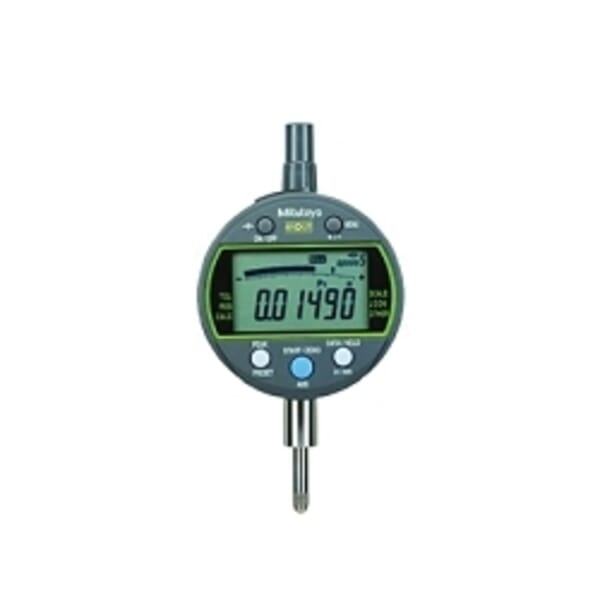

Name: Mitutoyo ABSOLUTE 543-302 ID-C 543 Inch/Metric Peak Hold Digimatic Indicator With Lug Back, 1/2 in/12.7 mm Measuring, 0.00012 in, 0.003 mm Accuracy, 0.00005 in, 0.0001 in, 0.0005 in/0.001 mm, 0.01 mm Resolution, LCD Display
Brand: Mitutoyo America Corporation
SKU: MITUTOYO_SEP_003314
Availability: OutOfStock

Mitutoyo America Corporation

Mitutoyo ABSOLUTE 543-302 ID-C 543 Inch/Metric Peak Hold Digimatic Indicator With Lug Back, 1/2 in/12.7 mm Measuring, 0.00012 in, 0.003 mm Accuracy, 0.00005 in, 0.0001 in, 0.0005 in/0.001 mm, 0.01 mm Resolution, LCD Display

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Mitutoyo America Corporation

Mitutoyo ABSOLUTE 543-302 ID-C 543 Inch/Metric Peak Hold Digimatic Indicator With Lug Back, 1/2 in/12.7 mm Measuring, 0.00012 in, 0.003 mm Accuracy, 0.00005 in, 0.0001 in, 0.0005 in/0.001 mm, 0.01 mm Resolution, LCD Display

ManufacturerMitutoyo

Part #039143262

MFG #543-302

UPC #603908594208

Mitutoyo ABSOLUTE Digimatic Indicator, Inch/Metric Peak Hold, Series: ID-C 543, 1/2 in/12.7 mm Measuring, 0.00012 in, 0.003 mm Accuracy, 0.00005 in, 0.0001 in, 0.0005 in/0.001 mm, 0.01 mm Resolution, LCD Display, =1.5 N Measuring Force, CR2032 Battery

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Mitutoyo America Corporation

Accuracy: 0.00012 in, 0.003 mm

Battery Type: CR2032

Country of Origin: JP

Display Type: LCD

Manufacturer Name: Mitutoyo America Corporation

Measuring Force: </=1.5 N

Measuring Range: 1/2 in/12.7 mm

Resolution: 0.00005 in, 0.0001 in, 0.0005 in/0.001 mm, 0.01 mm

Series: ID-C 543

Type: Inch/Metric Peak Hold

The new peak hold type digimatic indicator features both a key lock and parameter lock to prevent accidental changing of settings during operation
Parameter setting software makes it even easy to set all available parameters
An analog bar provides easy to read values when scanning for max, min and TIR values
The maximum, minimum or runout value can be displayed during measurement
Go/NO-GO judgment is performed by setting the upper and lower tolerances for max, min and runout values
High speed sampling ratio of 50 times/s
Employing the ABSOLUTE linear encoder, the signal ID-C always displays the spindle absolute position from the origin when turned on
IP42 rated

ANSI/AGD Type

Mitutoyo ABSOLUTE Digimatic Indicator, Inch/Metric Peak Hold, Series: ID-C 543, 1/2 in/12.7 mm Measuring, 0.00012 in, 0.003 mm Accuracy, 0.00005 in, 0.0001 in, 0.0005 in/0.001 mm, 0.01 mm Resolution, LCD Display, =1.5 N Measuring Force, CR2032 Battery

Catalog

Manufacturer Name: Mitutoyo America Corporation

Accuracy: 0.00012 in, 0.003 mm

Battery Type: CR2032

Country of Origin: JP

Display Type: LCD

Manufacturer Name: Mitutoyo America Corporation

Measuring Force: </=1.5 N

Measuring Range: 1/2 in/12.7 mm

Resolution: 0.00005 in, 0.0001 in, 0.0005 in/0.001 mm, 0.01 mm

Series: ID-C 543

Type: Inch/Metric Peak Hold

The new peak hold type digimatic indicator features both a key lock and parameter lock to prevent accidental changing of settings during operation
Parameter setting software makes it even easy to set all available parameters
An analog bar provides easy to read values when scanning for max, min and TIR values
The maximum, minimum or runout value can be displayed during measurement
Go/NO-GO judgment is performed by setting the upper and lower tolerances for max, min and runout values
High speed sampling ratio of 50 times/s
Employing the ABSOLUTE linear encoder, the signal ID-C always displays the spindle absolute position from the origin when turned on
IP42 rated

ANSI/AGD Type

Mitutoyo ABSOLUTE Digimatic Indicator, Inch/Metric Peak Hold, Series: ID-C 543, 1/2 in/12.7 mm Measuring, 0.00012 in, 0.003 mm Accuracy, 0.00005 in, 0.0001 in, 0.0005 in/0.001 mm, 0.01 mm Resolution, LCD Display, =1.5 N Measuring Force, CR2032 Battery

Catalog
