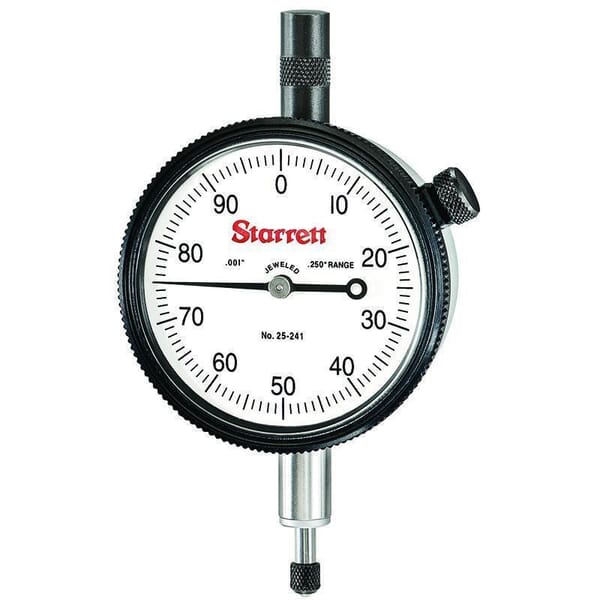

Starrett 25-241J 25 Series AGD Group 2 Continuous Dial Indicator, 1/4 in, 0 to 100 Dial Reading, 0.001 in, 2-1/4 in Dial, 3/16 in Dia Tip

Product Line: Starrett

MFG #: 53271

Your Price

$282.50 / EA

Qty

Details

Part#530453271

Manufacturer:L.S. Starrett

UPC:049659532715

MFG #53271

Starrett Dial Indicator, AGD Group 2 Continuous Dial, Series: 25 Series, 1/4 in, 0 to 100 Dial, Graduations: 0.001 in, 2-1/4 in Dial, White Dial, 3/16 in Dia Tip, Stainless Steel, Satin/Eggshell

Specifications

Country of Origin

Dial Color

White

Dial Reading

0 to 100

Dial Size

2-1/4 in

Finish

Satin/Eggshell

Graduations

0.001 in

Manufacturer Name

L.S. Starrett

Material

Stainless Steel

Measuring Range

1/4 in

Series

25 Series

Tip Size

3/16 in Dia

Type

AGD Group 2 Continuous Dial

Application

For tool and die shops, machine shops and tool rooms

Item Features

Rugged and simple unit construction with a "universally fitting" design
Sharp bezel serrations for positive grip
Unbreakable crystal
Hardened stainless steel stem
Light but sturdy, no-glare satin finish on case
Hardened stainless steel rack, gears, spindle and pinions
Massive bridge for rigid bearing support
Non-reflecting white eggshell finish on dial
With jewel bearings and lug-on-center back mounting
0.1 in range one revolution
Direct acting compression spring eliminates side friction
Easy readability with the best, balanced style of graduation and number combination
Interchangeable contact point
Positive-acting clamp locks bezel in position
Four screw holes for 90 deg rotation of back

Standards
