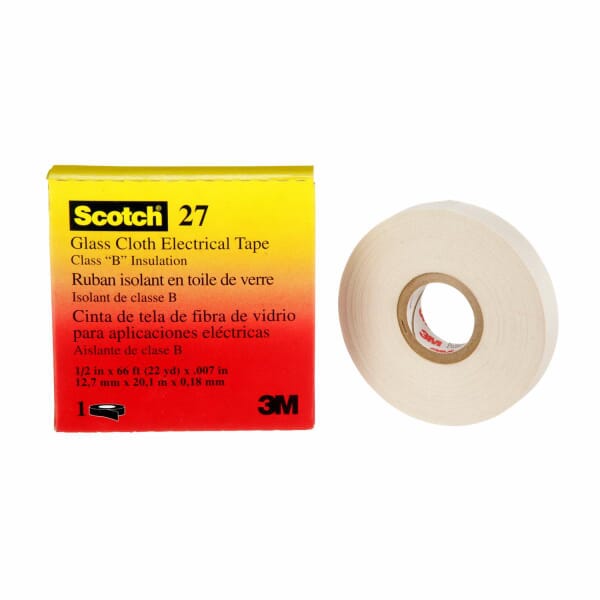

3M 7000005814 Tape, 22 yd L 0.5 in W, 7 mil THK, Rubber Adhesive, Glass Cloth Backing, White
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact Us3M 7000005814 Tape, 22 yd L 0.5 in W, 7 mil THK, Rubber Adhesive, Glass Cloth Backing, White
Manufacturer3M
Part #400715066
MFG #7000005814
3M, 7000005814, Tape, 22 yd Length, 0.5 in Width, 7 mil Thickness, White, Rubber Adhesive, Glass Cloth Backing, 600 V, 2725 V Dielectric Strength, 302 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: UL Listed/RoHS 211/65/EU/CSA Certified
$19.29
/ RLKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name: 3MAdhesion Strength: 30 in-ozAdhesive Material: Rubber, Thermosetable RubberBacking Material: Glass ClothColor: WhiteCore Diameter: 3 inCountry of Origin: USDielectric Strength: 2725 V, 3000 V/milLength: 22 yd, 66 ftManufacturer Name: 3MMaterial Type: Glass ClothMaximum Operating Temperature: 302 deg FMinimum Operating Temperature: 32 deg FSpecifications Met: UL Listed, CSA Certified, UL Listed/RoHS 211/65/EU/CSA CertifiedTensile Strength: 150 in-lbThickness: 7 milType: Premium-Grade Special UseVoltage Rating: 600 V, 600 VACWidth: 0.5 in, 1/2 in
- PRESSURE SENSITIVE ADHESIVE - Non - corrosive, solvent resistant, thermosetting rubber adhesive
- INSULATES A VARIETY OF WAYS - Use as coil cover, anchor, banding, core layer and crossover insulation
- PROVIDES A STRONG BOND - At extreme temperatures ranging from low temperature to 302F (up to 150C)
- RELIABLE AND RESISTANT - Resists rotting and shrinking after extended use in a variety of environments
- GLASS CLOTH BACKING - Optimally insulates with no shrinking or burning
- CSA Certified|UL Listed|RoHS 2011/65/EU Compliant
- The 3M Glass Cloth Electrical Tape 27 is a great option when it comes to electrical jobs that require heat insulation, edge tear resistance and adaptable tape applications. The composite in its material is suitable for 600V rated, dry location application on motors and transformers. 3M Glass Cloth Electrical Tape 27 features a pressure sensitive, high temperature, thermosetting, rubber adhesive that offers exceptional bonding once adhered. This reactive compound results in a non-corrosive adhesive that offers solvent resistant protection; providing stability and reliability. A 7-mil woven insulating glass cloth provides high mechanical strength, high temperature resistance and heat-stable insulation for heating units and oven controls, motor leads and switches. This glass cloth backing holds a feature suitable for tough 600V ratings and endures extreme temperature operations (low temperatures up to 302F / 0 to 150C) often presented in application environments. Resists rotting and shrinking after extended use.
- Manufacturer Name: 3MAdhesion Strength: 30 in-ozAdhesive Material: Rubber, Thermosetable RubberBacking Material: Glass ClothColor: WhiteCore Diameter: 3 inCountry of Origin: USDielectric Strength: 2725 V, 3000 V/milLength: 22 yd, 66 ftManufacturer Name: 3MMaterial Type: Glass ClothMaximum Operating Temperature: 302 deg FMinimum Operating Temperature: 32 deg FSpecifications Met: UL Listed, CSA Certified, UL Listed/RoHS 211/65/EU/CSA CertifiedTensile Strength: 150 in-lbThickness: 7 milType: Premium-Grade Special UseVoltage Rating: 600 V, 600 VACWidth: 0.5 in, 1/2 in
- PRESSURE SENSITIVE ADHESIVE - Non - corrosive, solvent resistant, thermosetting rubber adhesive
- INSULATES A VARIETY OF WAYS - Use as coil cover, anchor, banding, core layer and crossover insulation
- PROVIDES A STRONG BOND - At extreme temperatures ranging from low temperature to 302F (up to 150C)
- RELIABLE AND RESISTANT - Resists rotting and shrinking after extended use in a variety of environments
- GLASS CLOTH BACKING - Optimally insulates with no shrinking or burning
- CSA Certified|UL Listed|RoHS 2011/65/EU Compliant
- The 3M Glass Cloth Electrical Tape 27 is a great option when it comes to electrical jobs that require heat insulation, edge tear resistance and adaptable tape applications. The composite in its material is suitable for 600V rated, dry location application on motors and transformers. 3M Glass Cloth Electrical Tape 27 features a pressure sensitive, high temperature, thermosetting, rubber adhesive that offers exceptional bonding once adhered. This reactive compound results in a non-corrosive adhesive that offers solvent resistant protection; providing stability and reliability. A 7-mil woven insulating glass cloth provides high mechanical strength, high temperature resistance and heat-stable insulation for heating units and oven controls, motor leads and switches. This glass cloth backing holds a feature suitable for tough 600V ratings and endures extreme temperature operations (low temperatures up to 302F / 0 to 150C) often presented in application environments. Resists rotting and shrinking after extended use.
