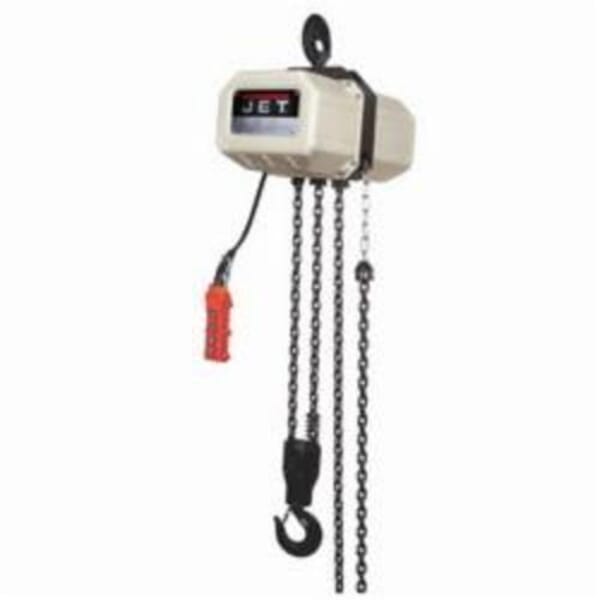

JET JT9-123150 SSC Electric Chain Hoist, 0.5 ton Load, 6.3 x 19 mm Chain/Rope, 15 ft H Lifting, 1-1/5 hp Power Rating, 230/460 VAC

Product Line: JET

MFG #: 123150

Your Price

$3,137.20 / EA

Qty

Details

Part#720390627

Manufacturer:JPW Industries

UPC:662755906275

MFG #123150

JET, JT9-123150, Electric Chain Hoist, Series: SSC, 0.5 ton Load, 6.3 x 19 mm Chain/Rope, 15 ft Lifting Height, 31.5 fpm Lift, 20-3/16 in Minimum Between Hooks, NEMA 4X Pushbutton Control Pendant, DC Electromagnetic Brake, 1-1/5 hp Power, 230/460 VAC, 3.5/1.8 A, 20-3/16 in Headroom, 106 lb Weight, 21.4 in L x 16.6 in W x 15.7 in H Dimensions

Specifications

Amperage Rating

3.5/1.8 A

Brake Type

DC Electromagnetic

Chain/Rope Size

6.3 x 19 mm

Control Type

NEMA 4X Pushbutton Control Pendant

Country of Origin

Dimensions

21.4 in L x 16.6 in W x 15.7 in H

Headroom

20-3/16 in

Lift Speed

31.5 fpm

Lifting Height

15 ft

Load Capacity

0.5 ton

Manufacturer Name

JPW Industries

Minimum Between Hooks

20-3/16 in

Power Rating

1-1/5 hp

Series

SSC

Voltage Rating

230/460 VAC

Weight

106 lb

Application

Commercial and Industrial Applications

Item Features

Overload protection - slip clutch design prevents the hoist from lifting damaging loads above its rated capacity
Thermal overload protection - protects the hoist from overheating in low voltage situations
An industry proven safety feature that secures the load even if power is interrupted to the hoist
Limit switches - upper and lower limiting switches increase safety by preventing the load chain from over traveling
Sealed gear train - maintenance free gear train incorporates a sealed oil bath that eliminates upkeep
Grade 80 load chain - grade 80 black oxide coated load chain for durability
Control pendant- 24 V push button controller with cable strain relief system for durability and reliability in industrial and commercial settings
All steel construction - fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust and debris lengthening the life of the hoist
H4 duty cycle
25% duty cycle
Heavy duty ventilated motor with thermal overload protection or reverse phase protection
Equipped with heavy duty chain container
Quick-connect wiring for power and push button controls
Upper and lower limit switches prevent over-travel
Three phase models feature reverse phase protection
Easy to install, inspect and maintain

Standards

ANSI/ASME B30.16|HST-1|OSHA Compliant

Documents

Specification Sheet
