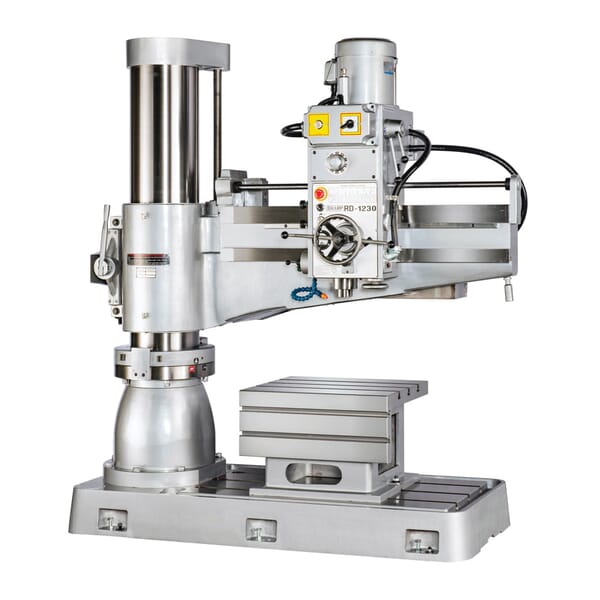

Sharp RD1230 Radial Arm Drill, 5 hp, 220/440 V

ManufacturerSharp

Part #848670081

MFG #RD1230

Sharp Radial Arm Drill, MT#4 Spindle Taper, 49.62 in Spindle Travel, 44 to 150 rpm Spindle Speed, 12 Spindle Speed, 19.37 to 54 in Spindle to Table Distance, 13.37 to 63 in Spindle to Column Distance, 67.68 x 27.93 x 6.5 in Base, 11.81 in Diameter Column, 5 hp, 220/440 V, 25/12.5 A, 6.66 x 3.25 x 7.41 ft Dimensions

$32,550.00

/ EA

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 25/12.5 A

Base Dimensions: 67.68 x 27.93 x 6.5 in

Column Diameter: 11.81 in

Country of Origin: TW

Dimensions: 6.66 x 3.25 x 7.41 ft

Horsepower: 5 hp

Manufacturer Name: Sharp-Industries, Inc

Number of Spindle Speeds: 12

Spindle Speed: 44 to 150 rpm

Spindle Taper: MT#4

Spindle to Column Distance: 13.37 to 63 in

Spindle to Table Distance: 19.37 to 54 in

Spindle Travel: 49.62 in

Voltage Rating: 220/440 V

Box Table, Coolant System and Work Light

Power clamping for column, spindle head and arm
Double tube column design for extra load support of arm and spindle head
Adjustable spindle counter balance system
Separate motors for arm elevating and clamping
Safety device to prevent sudden drop of arm
Friction type clutch in spindle for overload protection
Automatic tool ejector
Coolant system and box table are standard
Over travel protection on arm and head feed
Sliding arm designed with hardened and ground ways

Ideal for drilling, tapping, boring, reaming, lapping, screwing, counter boring and spot facing

Box Table, Coolant System and Work Light
