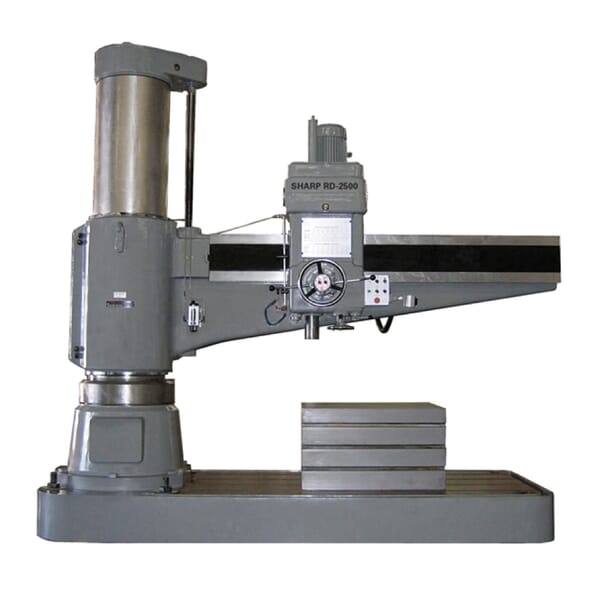

Sharp RD-2500 Radial Arm Drill, 10 hp, 220/440 V

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sharp-Industries, Inc

Sharp RD-2500 Radial Arm Drill, 10 hp, 220/440 V

ManufacturerSharp

Part #848670011

MFG #RD-2500

Sharp Radial Arm Drill, MT#6 Spindle Taper, 78.74 in Spindle Travel, 16 to 1250 rpm Spindle Speed, 16 Spindle Speed, 21.65 to 78.74 in Spindle to Table Distance, 98.42 in Spindle to Column Distance, 138.58 x 55.12 x 12.6 in Base, 21.65 in Diameter Column, 10 hp, 220/440 V, 50/20 A, 164 in L x 74 in W x 152 in H Dimensions

$154,200.00

/ EA

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 50/20 A

Base Dimensions: 138.58 x 55.12 x 12.6 in

Column Diameter: 21.65 in

Country of Origin: TW

Dimensions: 164 in L x 74 in W x 152 in H

Horsepower: 10 hp

Manufacturer Name: Sharp-Industries, Inc

Number of Spindle Speeds: 16

Spindle Speed: 16 to 1250 rpm

Spindle Taper: MT#6

Spindle to Column Distance: 98.42 in

Spindle to Table Distance: 21.65 to 78.74 in

Spindle Travel: 78.74 in

Voltage Rating: 220/440 V

Box Table, Coolant System and Work Light

Hydraulic clamping for column, spindle head and arm
Double tube column design for extra load support of arm and spindle head
Adjustable spindle counter balance system
Separate motors for arm elevating and clamping
Safety device to prevent sudden drop of arm
Friction type clutch in spindle for overload protection
Preset spindle speed
Coolant system and box table are standard
Over travel protection on arm and head feed
Sliding arm designed with hardened and ground ways

Box Table, Coolant System and Work Light

Ideal for drilling, tapping, boring, reaming, lapping, screwing, counter boring and spot facing

Catalog

Line Drawing

Owners/User Manual

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 50/20 A

Base Dimensions: 138.58 x 55.12 x 12.6 in

Column Diameter: 21.65 in

Country of Origin: TW

Dimensions: 164 in L x 74 in W x 152 in H

Horsepower: 10 hp

Manufacturer Name: Sharp-Industries, Inc

Number of Spindle Speeds: 16

Spindle Speed: 16 to 1250 rpm

Spindle Taper: MT#6

Spindle to Column Distance: 98.42 in

Spindle to Table Distance: 21.65 to 78.74 in

Spindle Travel: 78.74 in

Voltage Rating: 220/440 V

Box Table, Coolant System and Work Light

Hydraulic clamping for column, spindle head and arm
Double tube column design for extra load support of arm and spindle head
Adjustable spindle counter balance system
Separate motors for arm elevating and clamping
Safety device to prevent sudden drop of arm
Friction type clutch in spindle for overload protection
Preset spindle speed
Coolant system and box table are standard
Over travel protection on arm and head feed
Sliding arm designed with hardened and ground ways

Box Table, Coolant System and Work Light

Ideal for drilling, tapping, boring, reaming, lapping, screwing, counter boring and spot facing

Catalog

Line Drawing

Owners/User Manual
