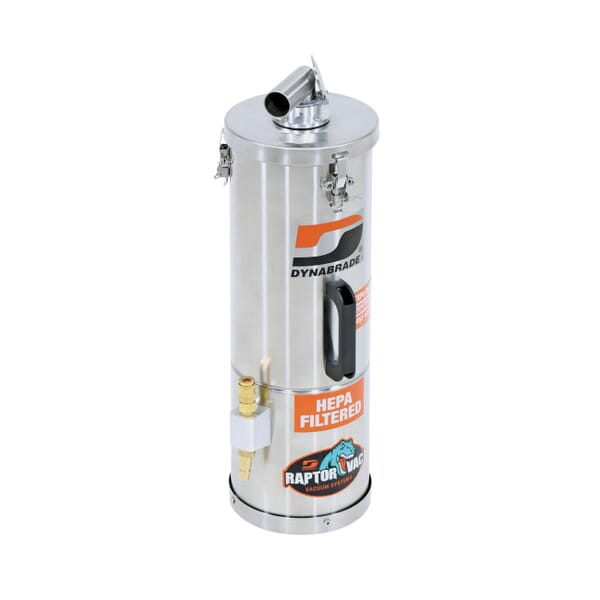

Dynabrade 61470 Raptor Vac Portable Wall Mount Pneumatic Vacuum, 1.5 gal Tank, 50 cfm Air Flow
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsDynabrade 61470 Raptor Vac Portable Wall Mount Pneumatic Vacuum, 1.5 gal Tank, 50 cfm Air Flow
ManufacturerDynabrade
Part #134061470
MFG #61470
UPC #616026614703
- Manufacturer Name:Â DynabradeAir Flow Rate:Â 50 cfmCord Type:Â Stainless Steel ConductiveCountry of Origin:Â CADimensions:Â 29 in L x 17 in W x 16 in HFlow Rate:Â 45 scfmManufacturer Name:Â DynabradeSeries:Â Raptor VacSound Level:Â 68 dBStatic Pressure:Â 90 psiTank Capacity:Â 1.5 galType:Â Portable Wall Mount
- Pneumatic portable vacuum for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys
- Collects maximum of 5 lbs (2.27 kg) of dust
- Designed for dry-only source capture, where fine dust must be recovered
- Legally certified as explosion-proof and dust ignition-proof
- Includes HEPA H14 filter with 99.995% efficiency on 0.3 micron
- Stainless steel recovery tank (SAE 304)
- Easy recovery bag access
- Unit is static-dissipating (kit included) and conductive
- Aerosol leak tested for quality assurance
- Vacuum for use in group A - Atmospheres, containing acetylene, group B - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air, group C - Atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air, group D - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode, group E - Atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys, group F - Atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust, group G - Atmospheres, containing wood and plastic dusts
(1) 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, (1) Composite Coupler, (1) Vacuum Hose Swivel, Conductive Recovery Bag, HEPA H14 Filter with 99.995% Efficiency on 0.3 micron and Wall Mounting Hardware
- (1) 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, (1) Composite Coupler, (1) Vacuum Hose Swivel, Conductive Recovery Bag, HEPA H14 Filter with 99.995% Efficiency on 0.3 micron and Wall Mounting Hardware
- Manufacturer Name:Â DynabradeAir Flow Rate:Â 50 cfmCord Type:Â Stainless Steel ConductiveCountry of Origin:Â CADimensions:Â 29 in L x 17 in W x 16 in HFlow Rate:Â 45 scfmManufacturer Name:Â DynabradeSeries:Â Raptor VacSound Level:Â 68 dBStatic Pressure:Â 90 psiTank Capacity:Â 1.5 galType:Â Portable Wall Mount
- Pneumatic portable vacuum for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys
- Collects maximum of 5 lbs (2.27 kg) of dust
- Designed for dry-only source capture, where fine dust must be recovered
- Legally certified as explosion-proof and dust ignition-proof
- Includes HEPA H14 filter with 99.995% efficiency on 0.3 micron
- Stainless steel recovery tank (SAE 304)
- Easy recovery bag access
- Unit is static-dissipating (kit included) and conductive
- Aerosol leak tested for quality assurance
- Vacuum for use in group A - Atmospheres, containing acetylene, group B - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air, group C - Atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air, group D - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode, group E - Atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys, group F - Atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust, group G - Atmospheres, containing wood and plastic dusts
(1) 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, (1) Composite Coupler, (1) Vacuum Hose Swivel, Conductive Recovery Bag, HEPA H14 Filter with 99.995% Efficiency on 0.3 micron and Wall Mounting Hardware
- (1) 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, (1) Composite Coupler, (1) Vacuum Hose Swivel, Conductive Recovery Bag, HEPA H14 Filter with 99.995% Efficiency on 0.3 micron and Wall Mounting Hardware
