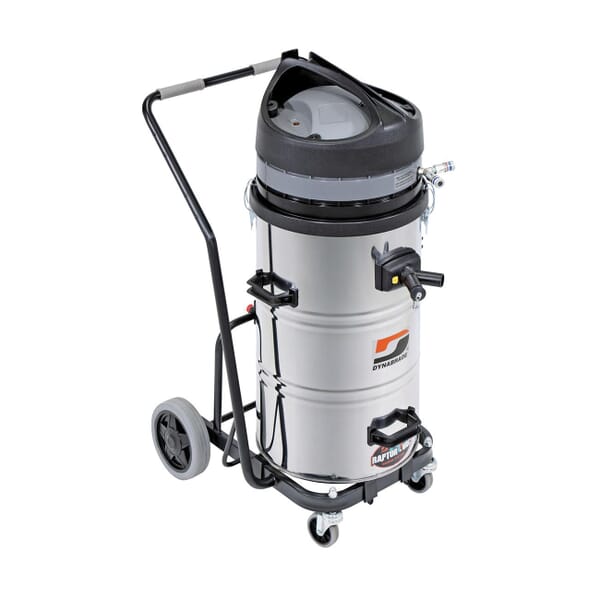

Dynabrade 61401 Raptor Vac Electric Portable Vacuum System, 20 A, 20 gal Tank, 1250 W Power Rating, 120 VAC, 238 cu-m/hr Air Flow, Dry Filter
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsDynabrade 61401 Raptor Vac Electric Portable Vacuum System, 20 A, 20 gal Tank, 1250 W Power Rating, 120 VAC, 238 cu-m/hr Air Flow, Dry Filter
ManufacturerDynabrade
Part #134061401
MFG #61401
UPC #616026614017
Dynabrade Vacuum System, Electric Portable, Series: Raptor Vac, 20 gal Tank, 1250 W, 120 VAC, 20 A, 80 to 150 psi Static Pressure, 238 cu-m/hr, Stainless Steel Conductive Cord, Dry Filter, On/Off Switch Control, 27 in L x 24 in W x 48 in H
$3,157.75
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â DynabradeAir Flow Rate:Â 238 cu-m/hrAmperage Rating:Â 20 AControl Type:Â On/Off SwitchCord Type:Â Stainless Steel ConductiveCountry of Origin:Â ITDimensions:Â 27 in L x 24 in W x 48 in HFilter Type:Â DryManufacturer Name:Â DynabradePower Rating:Â 1250 WSeries:Â Raptor VacStatic Pressure:Â 80 to 150 psiTank Capacity:Â 20 galType:Â Electric PortableVoltage Rating:Â 120 VAC
(2) 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y Connector, (2) Composite Couplers, Vacuum Hose Swivel Cuff, (2) Disposable Collection Bags
- Designed for general source capture and dry cleanup
- Connects to optional 61483 cart
- 7.8 ft (238 cm) water static lift; 125 cfm (3,3521 L/Min) vacuum flow
- Allows operation of two tools simultaneously
- Vacuum starts automatically with startup of tool
- Bypass motor System uses environmental air to cool the motor and extend vacuum life
- Heavy duty stainless steel recovery tank, with 20 gallon (78 liter) capacity for clean filter assurance
- This size allows filter to remain at substantial distance from collected debris, reducing clogging and extending motor life
- Includes a HEPA H13 filter with 99.95 % efficiency on 0.3 micron
- Automatic cleaning of filter
- By connecting vacuum unit to external air supply, a blast of air is released to filter every 40 sec of operation, to cyclically clean filter
- Handy electric outlet on motor head allows for additional versatility in workplace
- Convenient orange warning light indicates that filter needs replacement
- Red warning light indicates protection device has been activated to prevent heat overload to motor
- This unit requires a NEMA 5-20 plug/outlet
- Not included optional cleaning kit (96558) - Vacuum hose, 6 ft (1.8 m) L, curved handle with two extensions, round brush, crevice tool, coarse nozzle attachment
- (2) 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y Connector, (2) Composite Couplers, Vacuum Hose Swivel Cuff, (2) Disposable Collection Bags
- USA/Canada Certifications - UL Listed|M-Class|European Certifications - CE|EAC|M-Class
- Manufacturer Name:Â DynabradeAir Flow Rate:Â 238 cu-m/hrAmperage Rating:Â 20 AControl Type:Â On/Off SwitchCord Type:Â Stainless Steel ConductiveCountry of Origin:Â ITDimensions:Â 27 in L x 24 in W x 48 in HFilter Type:Â DryManufacturer Name:Â DynabradePower Rating:Â 1250 WSeries:Â Raptor VacStatic Pressure:Â 80 to 150 psiTank Capacity:Â 20 galType:Â Electric PortableVoltage Rating:Â 120 VAC
(2) 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y Connector, (2) Composite Couplers, Vacuum Hose Swivel Cuff, (2) Disposable Collection Bags
- Designed for general source capture and dry cleanup
- Connects to optional 61483 cart
- 7.8 ft (238 cm) water static lift; 125 cfm (3,3521 L/Min) vacuum flow
- Allows operation of two tools simultaneously
- Vacuum starts automatically with startup of tool
- Bypass motor System uses environmental air to cool the motor and extend vacuum life
- Heavy duty stainless steel recovery tank, with 20 gallon (78 liter) capacity for clean filter assurance
- This size allows filter to remain at substantial distance from collected debris, reducing clogging and extending motor life
- Includes a HEPA H13 filter with 99.95 % efficiency on 0.3 micron
- Automatic cleaning of filter
- By connecting vacuum unit to external air supply, a blast of air is released to filter every 40 sec of operation, to cyclically clean filter
- Handy electric outlet on motor head allows for additional versatility in workplace
- Convenient orange warning light indicates that filter needs replacement
- Red warning light indicates protection device has been activated to prevent heat overload to motor
- This unit requires a NEMA 5-20 plug/outlet
- Not included optional cleaning kit (96558) - Vacuum hose, 6 ft (1.8 m) L, curved handle with two extensions, round brush, crevice tool, coarse nozzle attachment
- (2) 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y Connector, (2) Composite Couplers, Vacuum Hose Swivel Cuff, (2) Disposable Collection Bags
- USA/Canada Certifications - UL Listed|M-Class|European Certifications - CE|EAC|M-Class
