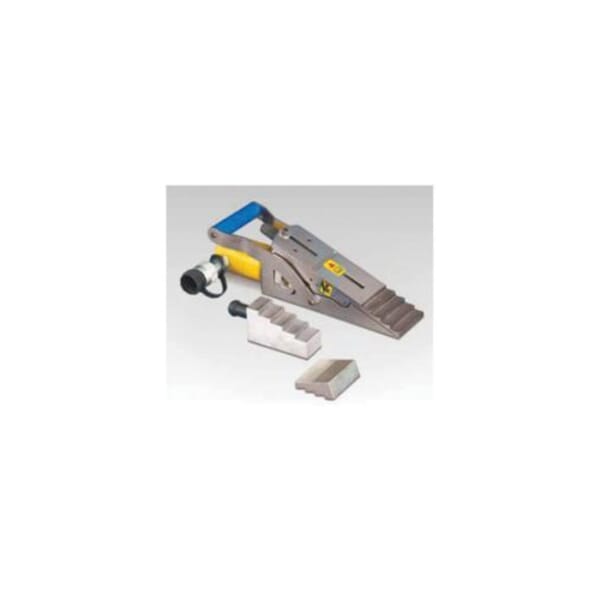

Enerpac LW-16 LW Series Single Acting Hydraulic Vertical Lifting Wedge, 14-1/2 in L x 5-3/4 in H, 2.72 in Spreading

Product Line: Enerpac

MFG #: LW16

Your Price

$4,151.00 / EA

Qty

Details

Part#283533055

Manufacturer:Enerpac

UPC:662005133055

MFG #LW16

Enerpac Hydraulic Vertical Lifting Wedge, Single Acting, Bare Tool, Series: LW Series, 14-1/2 in Length, 6-3/4 in Width, 5-3/4 in Height, 2.72 in Spreading Distance

Specifications

Bare Tool/Kit

Bare Tool

Country of Origin

Height

5-3/4 in

Length

14-1/2 in

Manufacturer Name

Enerpac

Series

LW Series

Spreading Distance

2.72 in

Type

Single Acting

Width

6-3/4 in

Application

For lifting and lowering heavy equipment with a small amount of floor clearance

Includes

RC-Series Cylinder with CR-400 Coupler

Item Features

Hydraulic vertical lifting wedge has lifting force of 16 ton at 700 bars hydraulic pressure
Requires very small access gap of only 10 mm
Each step can spread under full load
Straight vertical lifting
Unique interlocking wedge design, no first step bending and risk of slipping out
Single acting, spring return cylinder
0.83 in lifting stroke
10000 psi maximum operating pressure
4.75 cu-in oil capacity
0.39 in tip clearance

Item Includes

RC-Series Cylinder with CR-400 Coupler
