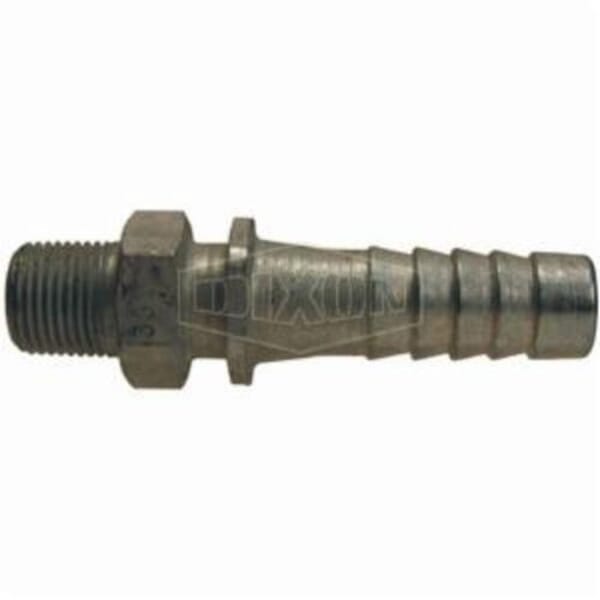

Dixon 3509 3500 Nipple, 1/4 x 1/2 in Nominal, MNPT x Hose Shank, 600 psi Pressure, Steel, Domestic

Product Line: Dixon

MFG #: 3509

Your Price

$7.67 / EA

Pack: 100/BX

Qty

Details

Part#746402907

Manufacturer:Dixon Valve & Coupling

MFG #3509

Dixon Nipple, Series: 3500, 1/4 x 1/2 in Nominal, MNPT x Hose Shank End Style, 600 psi Pressure, 70 deg F, Steel, Zinc Plated, Domestic

Specifications

Country of Origin

Domestic/Import

Domestic

End Style

MNPT x Hose Shank

Finish

Zinc Plated

Manufacturer Name

Dixon Valve & Coupling

Material

Steel

Nominal Size

1/4 x 1/2 in

Pressure Rating

600 psi

Series

3500

Temperature Rating

70 deg F

Application

For air and water service only

Item Features

The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type
To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
Connect the other end of the hose to the air supply using the standard quick-acting coupling
The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection
The whip hose should remain permanently connected to the tool
For air and water service only
Do not use in connection with drinking water
Wash hands after handling

Standards

PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
