Dixon 2DF2-B D Automatic Interchange Pneumatic Coupler, 1/4 in, Quick-Connect x FNPT, Brass

Product Line: Dixon

MFG #: 2DF2-B

Your Price

$10.55 / EA

Pack: 10/BX

Qty

Details

Part#746422000

Manufacturer:Dixon Valve & Coupling

MFG #2DF2-B

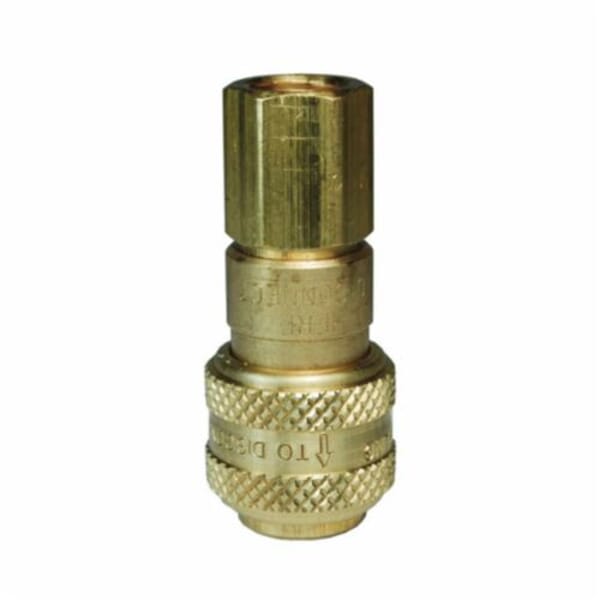

Dixon Pneumatic Coupler, Automatic Interchange, Series: D, Fitting/Connector Type: Coupler, 1/4 in Nominal, Quick-Connect x FNPT, 11/16 in Hex, 500 psi, -40 to 250 deg F, Brass, Polished Chrome, 0.99 in OD x 2.38 in L

Specifications

Dimensions

0.99 in OD x 2.38 in L

End Style

Quick-Connect x FNPT

Finish

Polished Chrome

Fitting/Connector Type

Coupler

Hex Size

11/16 in

Manufacturer Name

Dixon Valve & Coupling

Material

Brass

Nominal Size

1/4 in

Pressure Rating

500 psi

Series

D Series

Temperature Rating

-40 to 250 deg F

Type

Automatic Interchange

Application

Industrial Fittings

Item Features

Machined components are manufactured using solid bar stock
27 cfm flow rate
Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
Nitrile (Buna-N) seals are standard
Steel tubular valve

Standards

RoHS Compliant
