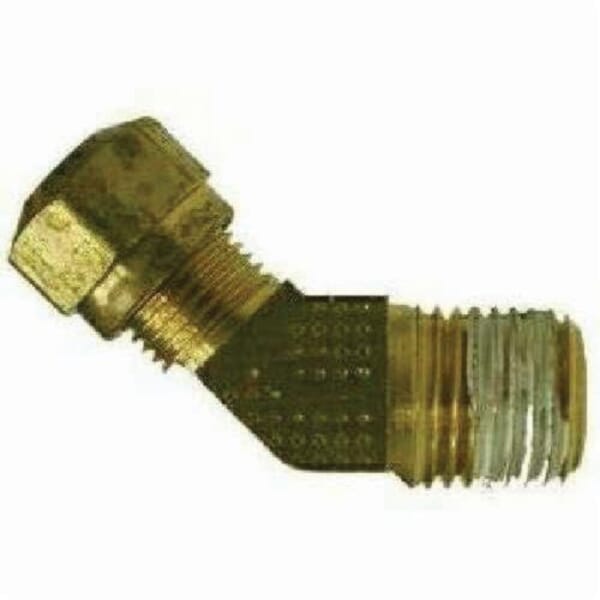

MMM 38151 Tube-to-Pipe Elbow, 3/8 x 1/4 in, Nylon AB x Male NPTF, CA360 Brass

Product Line: MMM

MFG #: 38151

Your Price

$5.69 / EA

Pack: 1/PK

Qty

Details

Part#999838151

Manufacturer:Midland Industries

MFG #38151

MMM Tube-to-Pipe Elbow, 45 deg Elbow, 3/8 x 1/4 in Nominal, Nylon AB x Male NPTF, 150 psi, -40 to 200 deg F, CA360 Brass

Specifications

Country of Origin

End Style

Nylon AB x Male NPTF

Fitting/Connector Type

45 deg Elbow

Manufacturer Name

Midland Industries

Material

CA360 Brass

Nominal Size

3/8 x 1/4 in

Pressure Rating

150 psi

Temperature Rating

-40 to 200 deg F

Application

For air brake systems except where temperatures exceed 200 deg F or where battery acid can drip on tubing, used with SAE J844 Type A and B NT nylon tubing

Item Features

Easy to assemble (no tube preparation or flaring required) built in tube support
Fair vibration resistance
Fittings utilize a ribbed sleeve for compression and positive grip
May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve, insert should be removed for copper tubing use
Additional number of turns from hand-tight 4
/- 0.02 tolerance on all dimensions

Standards

SAE 100302BA and DOT FMVSS 571,106
