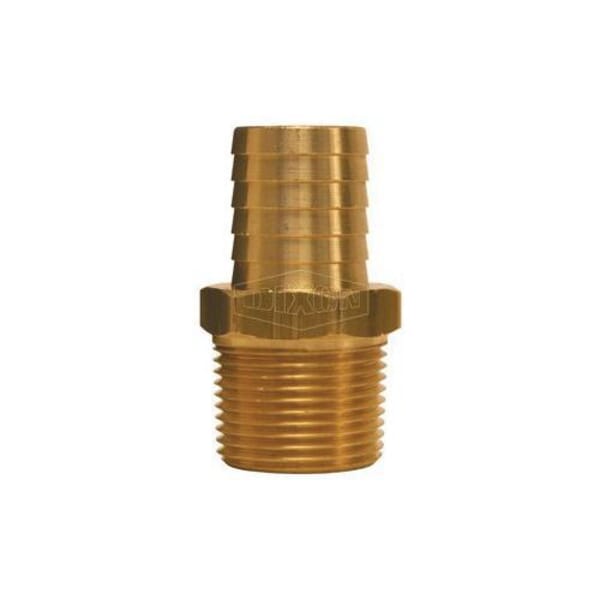

Dixon 1020408C 102 Standard Hose Barb, 1/2 x 1/4 in Nominal, MNPT x Hose Barb End Style, Brass, Domestic

ManufacturerDixon

Part #746420408

MFG #1020408C

UPC #697464426738

Dixon, 1020408C, Hose Barb, Standard, Series: 102, Fitting/Connector: Adapter, 1/2 x 1/4 in Nominal, MNPT x Hose Barb End Style, 7/8 in Hex, 1.97 in Length, 4 Barb, 0.97 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic

$5.24

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dixon Valve & Coupling

Barb Length: 0.97 in

Country of Origin: US

Domestic/Import: Domestic

End Style: MNPT x Hose Barb

Fitting/Connector Type: Adapter

Hex Size: 7/8 in

Length: 1.97 in

Manufacturer Name: Dixon Valve & Coupling

Material: Brass

Nominal Size: 1/2 x 1/4 in

Number of Barb: 4

Pressure Rating: 150 psi

Series: 102

Temperature Rating: -40 to 160 deg F

Type: Standard

All standard hose fittings are intended for use with hose clamps or crimped ferrules
360 cda brass construction
Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
Do not use in connection with drinking water
Wash hands after handling
0.97 in L barb
4 barbs
Fixed fitting swivel torque
Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
Barbed fitting for a tight seal on hoses

Dixon, 1020408C, Hose Barb, Standard, Series: 102, Fitting/Connector: Adapter, 1/2 x 1/4 in Nominal, MNPT x Hose Barb End Style, 7/8 in Hex, 1.97 in Length, 4 Barb, 0.97 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic

Catalog

Specification Sheet

Video Link

Manufacturer Name: Dixon Valve & Coupling

Barb Length: 0.97 in

Country of Origin: US

Domestic/Import: Domestic

End Style: MNPT x Hose Barb

Fitting/Connector Type: Adapter

Hex Size: 7/8 in

Length: 1.97 in

Manufacturer Name: Dixon Valve & Coupling

Material: Brass

Nominal Size: 1/2 x 1/4 in

Number of Barb: 4

Pressure Rating: 150 psi

Series: 102

Temperature Rating: -40 to 160 deg F

Type: Standard

All standard hose fittings are intended for use with hose clamps or crimped ferrules
360 cda brass construction
Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
Do not use in connection with drinking water
Wash hands after handling
0.97 in L barb
4 barbs
Fixed fitting swivel torque
Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
Barbed fitting for a tight seal on hoses

Dixon, 1020408C, Hose Barb, Standard, Series: 102, Fitting/Connector: Adapter, 1/2 x 1/4 in Nominal, MNPT x Hose Barb End Style, 7/8 in Hex, 1.97 in Length, 4 Barb, 0.97 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic
