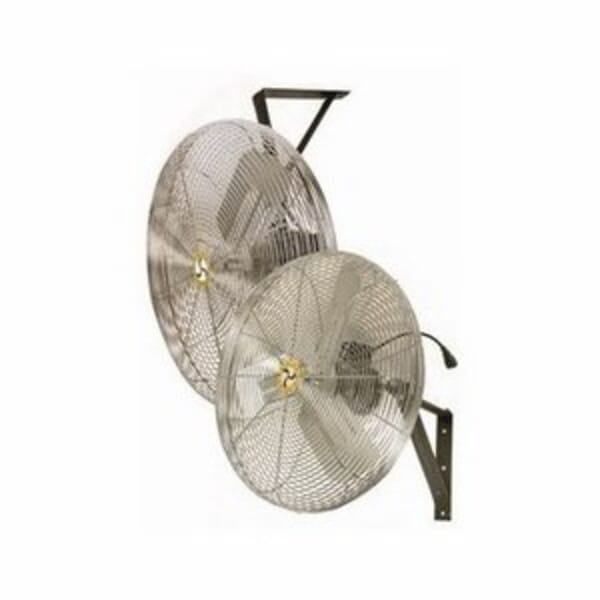

Name: Airmaster 71573 1-Phase Commercial Direct Drive Non-Oscillating Air Circulator, 30 in Blade, 6100/4400/2700 cfm Flow Rate, 115 V AC, 3.5 A
Brand: Airmaster Fan Co
SKU: AIR_00006
Availability: OutOfStock

Airmaster Fan Co

Airmaster 71573 1-Phase Commercial Direct Drive Non-Oscillating Air Circulator, 30 in Blade, 6100/4400/2700 cfm Flow Rate, 115 V AC, 3.5 A

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Airmaster Fan Co

Airmaster 71573 1-Phase Commercial Direct Drive Non-Oscillating Air Circulator, 30 in Blade, 6100/4400/2700 cfm Flow Rate, 115 V AC, 3.5 A

ManufacturerAirmaster

Part #342971573

MFG #71573

UPC #783429715730

Airmaster Air Circulator, 1-Phase Commercial Direct Drive Non-Oscillating, 30 in Blade, 6100/4400/2700 cfm, 1100/800/600 rpm Speed, 1/4 hp Power, 115 V AC, 3.5 A, 60 Hz Frequency, 3 Speed, 3 Blades, Galvanized Steel Blade, Permanent Split Capacitor/Totally Enclosed Air Over/Ball Bearing Motor, 76 dBA Sound Level, Steel Housing Material, Ceiling Mounting, 96 in H x 33 in W x 10-1/2 in D Dimensions, Import

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Airmaster Fan Co

Amperage Rating: 3.5 A

Blade Material: Galvanized Steel

Blade Size: 30 in

Country of Origin: CN

Dimensions: 96 in H x 33 in W x 10-1/2 in D

Domestic/Import: Import

Flow Rate: 6100/4400/2700 cfm

Frequency Rating: 60 Hz

Housing Material: Steel

Manufacturer Name: Airmaster Fan Co

Motor Type: Permanent Split Capacitor/Totally Enclosed Air Over/Ball Bearing

Mounting Type: Ceiling

Number of Blades: 3

Number of Speeds: 3

Power Rating: 1/4 hp

Sound Level: 76 dBA

Speed: 1100/800/600 rpm

Type: 1-Phase Commercial Direct Drive Non-Oscillating

Voltage Rating: 115 V AC, 115 VAC

15 ft Supply Cord and Three Prong Plug, UPS Cable and Safety Cable

Unassembled
Galvanized steel propeller
104 deg F maximum ambient temperature
Air velocity 800 fpm at 10 ft, 500 fpm at 20 ft, 200 fpm at 60 ft, 100 fpm at 80 ft
Direct drive, class B motor insulation30 in fan Dia
Nickel chrome wire guard finish
20-1/2 in wall mount, 22-1/2 in ceiling mount

2 Years

Airmaster Air Circulator, 1-Phase Commercial Direct Drive Non-Oscillating, 30 in Blade, 6100/4400/2700 cfm, 1100/800/600 rpm Speed, 1/4 hp Power, 115 V AC, 3.5 A, 60 Hz Frequency, 3 Speed, 3 Blades, Galvanized Steel Blade, Permanent Split Capacitor/Totally Enclosed Air Over/Ball Bearing Motor, 76 dBA Sound Level, Steel Housing Material, Ceiling Mounting, 96 in H x 33 in W x 10-1/2 in D Dimensions, Import

RoHS Compliant|UL Listed|cUL Listed|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

15 ft Supply Cord and Three Prong Plug, UPS Cable and Safety Cable

Catalog

Line Drawing

Manufacturer Name: Airmaster Fan Co

Amperage Rating: 3.5 A

Blade Material: Galvanized Steel

Blade Size: 30 in

Country of Origin: CN

Dimensions: 96 in H x 33 in W x 10-1/2 in D

Domestic/Import: Import

Flow Rate: 6100/4400/2700 cfm

Frequency Rating: 60 Hz

Housing Material: Steel

Manufacturer Name: Airmaster Fan Co

Motor Type: Permanent Split Capacitor/Totally Enclosed Air Over/Ball Bearing

Mounting Type: Ceiling

Number of Blades: 3

Number of Speeds: 3

Power Rating: 1/4 hp

Sound Level: 76 dBA

Speed: 1100/800/600 rpm

Type: 1-Phase Commercial Direct Drive Non-Oscillating

Voltage Rating: 115 V AC, 115 VAC

15 ft Supply Cord and Three Prong Plug, UPS Cable and Safety Cable

Unassembled
Galvanized steel propeller
104 deg F maximum ambient temperature
Air velocity 800 fpm at 10 ft, 500 fpm at 20 ft, 200 fpm at 60 ft, 100 fpm at 80 ft
Direct drive, class B motor insulation30 in fan Dia
Nickel chrome wire guard finish
20-1/2 in wall mount, 22-1/2 in ceiling mount

2 Years

Airmaster Air Circulator, 1-Phase Commercial Direct Drive Non-Oscillating, 30 in Blade, 6100/4400/2700 cfm, 1100/800/600 rpm Speed, 1/4 hp Power, 115 V AC, 3.5 A, 60 Hz Frequency, 3 Speed, 3 Blades, Galvanized Steel Blade, Permanent Split Capacitor/Totally Enclosed Air Over/Ball Bearing Motor, 76 dBA Sound Level, Steel Housing Material, Ceiling Mounting, 96 in H x 33 in W x 10-1/2 in D Dimensions, Import

RoHS Compliant|UL Listed|cUL Listed|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

15 ft Supply Cord and Three Prong Plug, UPS Cable and Safety Cable

Catalog

Line Drawing
