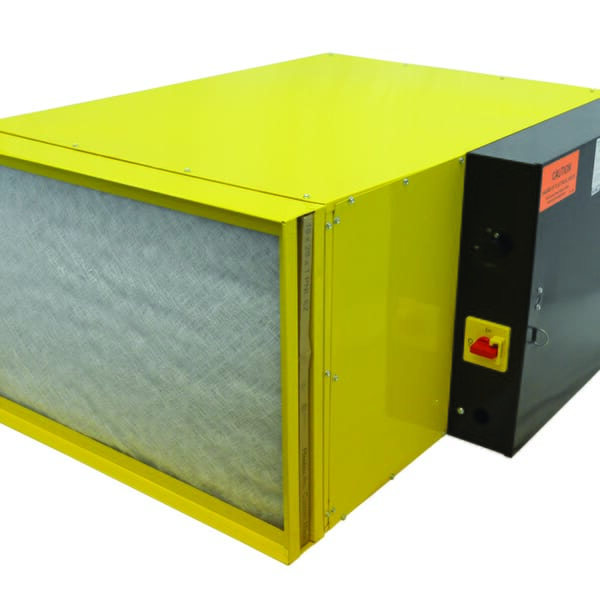

TPI HR-H3-14.1 HR Series 3-Phase Heavy Duty Hot Room Heater, 240 VAC, 36 A, 14.1 kW

Product Line: TPI

MFG #: HR-H3-14.1

Your Price

$12,114.87 / EA

Pack: EACH

Qty

Details

Part#633439678

Manufacturer:TPI Corporation

UPC:686334396783

MFG #HR-H3-14.1

TPI Hot Room Heater, 3-Phase Heavy Duty, Series: HR Series, 240 VAC, 36 A, 14.1 kW , 2200 cfm Flow Rate, 26 in Width, 18 in Height, 22.1 deg F, Metal, Galvannealed, Domestic

Specifications

Amperage Rating

36 A

Country of Origin

Domestic/Import

Domestic

Finish

Galvannealed

Flow Rate

2200 cfm

Height

18 in

Manufacturer Name

TPI Corporation

Material

Metal

Power Rating

14.1 kW

Series

HR Series

Temperature Rating

22.1 deg F

Type

3-Phase Heavy Duty

Voltage Rating

240 VAC

Width

26 in

Application

Commercial Applications

Item Features

Airflow switch, temperature limit controls (manual and automatic resets) and lockable disconnect switch with fuse block
High temperature rated, ball bearing motor, forward curved centrifugal blower standard with airflow switch, temperature limit controls (manual and automatic resets), and lockable disconnect switch with fuse block
Galvannealed 20 ga heavy duty metal housing
Totally enclosed, finned tubular stainless steel heating elements, provide the benefits of closer temperature regulation, less chance of shock hazards, less susceptibility for shorting, easy service and will better withstand physical abuse
Capability of mounting for in-room use, or mounting at an external wall/ceiling, with the heat inlet/outlet ducted to the room
Designed for permanent mounting and hard wiring
A typical hot room should be totally enclosed, with provisions made to keep air from escaping, other than the air being ducted through the heater itself when the unit is mounted outside the room
Insulation should be considered for walls and ceiling, to maximize energy efficiency and heater performance
1 in duct flanges at inlet and discharge ends are standard and to provide for ducting on the unit

Standards

ARRA Compliant|Buy American Act Compliant|ECCN EAR99|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
