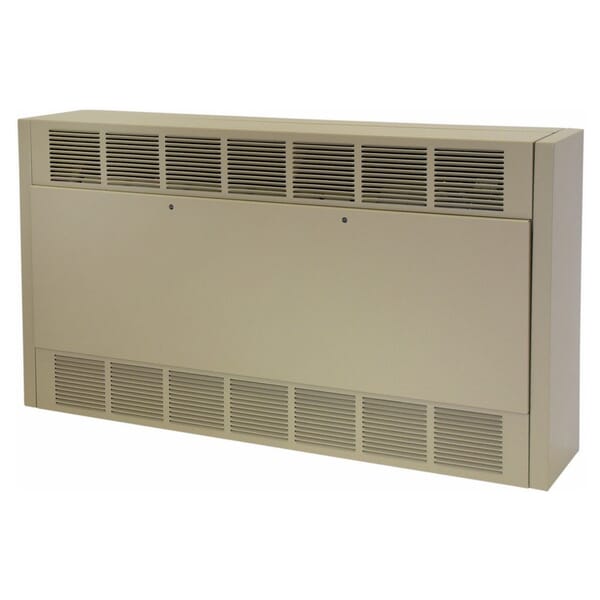

TPI 6346D102433B30D0F 6300 1/3-Phase Multiple Angle Stocked Electric Cabinet Unit Heater With Disconnect Switch, 6/10 kW, 240 VAC

ManufacturerTPI

Part #633466719

MFG #6346D102433B30D0F

UPC #686334667197

TPI Electric Cabinet Unit Heater, 1/3-Phase Multiple Angle Stocked, Series: 6300, 240 VAC, 26.9/16.2/30.7/43.6 A, 6/10 kW, 500 cfm, Ceiling Mount, Steel, Beige, Zinc Powder Coated, 46 in W x 9 in D x 25 in H

$4,435.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: TPI Corporation

Amperage Rating: 26.9/16.2/30.7/43.6 A

Color: Beige

Country of Origin: US

Dimensions: 46 in W x 9 in D x 25 in H

Finish: Zinc Powder Coated

Flow Rate: 500 cfm

Manufacturer Name: TPI Corporation

Material: Steel

Mounting Type: Ceiling

Power Rating: 6/10 kW

Series: 6300

Type: 1/3-Phase Multiple Angle Stocked

Voltage Rating: 240 VAC

(8) air inlet and outlet configurations
Motors are two speed shaded pole, resilient mounted, direct drive
High/low heat and blower speed offer versatility
Choice of eight standard control options include unit or wall mounted 120 or 24 V thermostats, with or without built-in control transformers, setback thermostat option
Industrial type finned tubular elements
Easily removable fan and element decks for simplified maintenance
Full length thermal protection
Front in/front out air flow configuration

Indoor-Commercial, Industrial and Institutional Application Such as Stores, Schools, Offices, Transportation Terminals, Churches and Entranceways

ARRA Compliant|Buy American Act Compliant|cETLus Listed|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov

Catalog

Specification Sheet

Warranty Information

Manufacturer Name: TPI Corporation

Amperage Rating: 26.9/16.2/30.7/43.6 A

Color: Beige

Country of Origin: US

Dimensions: 46 in W x 9 in D x 25 in H

Finish: Zinc Powder Coated

Flow Rate: 500 cfm

Manufacturer Name: TPI Corporation

Material: Steel

Mounting Type: Ceiling

Power Rating: 6/10 kW

Series: 6300

Type: 1/3-Phase Multiple Angle Stocked

Voltage Rating: 240 VAC

(8) air inlet and outlet configurations
Motors are two speed shaded pole, resilient mounted, direct drive
High/low heat and blower speed offer versatility
Choice of eight standard control options include unit or wall mounted 120 or 24 V thermostats, with or without built-in control transformers, setback thermostat option
Industrial type finned tubular elements
Easily removable fan and element decks for simplified maintenance
Full length thermal protection
Front in/front out air flow configuration

Indoor-Commercial, Industrial and Institutional Application Such as Stores, Schools, Offices, Transportation Terminals, Churches and Entranceways

Catalog

Specification Sheet

Warranty Information
