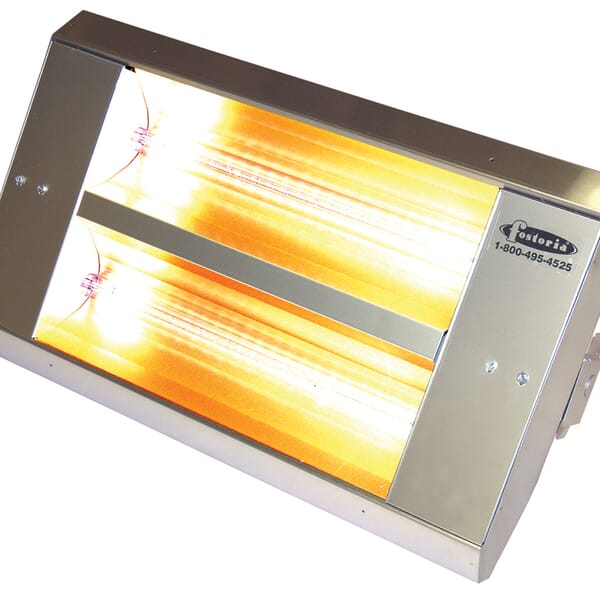

TPI 22230THSS208VAG THSS 1 Phase Electric Infrared Heater, 10922 Btu/hr, 208 VAC, 3.2 kW

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

TPI Corporation

TPI 22230THSS208VAG THSS 1 Phase Electric Infrared Heater, 10922 Btu/hr, 208 VAC, 3.2 kW

ManufacturerTPI

Part #633449040

MFG #22230THSS208VAG

UPC #686334490405

TPI Electric Infrared Heater, 1 Phase, Series: THSS, 10922 Btu/hr Capacity, 208 VAC, 15.4 A, 3.2 kW Power, 2 Lamps, 30 deg Symmetrical Beam Pattern, Multi-Mount Mounting, Stainless Steel, Stainless Steel, 24 in L x 15 in W x 11 in H Dimensions

$1,056.47

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: TPI Corporation

Amperage Rating: 15.4 A

Beam Pattern: 30 deg Symmetrical

Capacity: 10922 Btu/hr

Country of Origin: US

Dimensions: 24 in L x 15 in W x 11 in H

Finish: Stainless Steel

Manufacturer Name: TPI Corporation

Material: Stainless Steel

Mounting Type: Multi-Mount

Number of Lamps: 2

Power Rating: 3.2 kW

Series: THSS

Type: 1 Phase

Voltage Rating: 208 VAC

Reflectors and end caps for superior reflectivity
50% higher densities for 3 element units
High temperature lead wires
In-built surface mounting brackets allows for fixture adjustment up to 45 deg horizontal tilt
Corrosion resistance
Gold anodized aluminum reflector

(2) Clear 8 mm Quartz Lamps, Amber Gray Sleeves

ARRA Compliant|Buy American Act Compliant|cETLus Listed|ECCN EAR99|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer and chromium which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov

Snow and Ice Control, Outdoor Spot Heating, Indoor Heating, Recessed and Industrial Applications

Warranty Information

Catalog

Specification Sheet

Manufacturer Name: TPI Corporation

Amperage Rating: 15.4 A

Beam Pattern: 30 deg Symmetrical

Capacity: 10922 Btu/hr

Country of Origin: US

Dimensions: 24 in L x 15 in W x 11 in H

Finish: Stainless Steel

Manufacturer Name: TPI Corporation

Material: Stainless Steel

Mounting Type: Multi-Mount

Number of Lamps: 2

Power Rating: 3.2 kW

Series: THSS

Type: 1 Phase

Voltage Rating: 208 VAC

Reflectors and end caps for superior reflectivity
50% higher densities for 3 element units
High temperature lead wires
In-built surface mounting brackets allows for fixture adjustment up to 45 deg horizontal tilt
Corrosion resistance
Gold anodized aluminum reflector

(2) Clear 8 mm Quartz Lamps, Amber Gray Sleeves

ARRA Compliant|Buy American Act Compliant|cETLus Listed|ECCN EAR99|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer and chromium which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov

Snow and Ice Control, Outdoor Spot Heating, Indoor Heating, Recessed and Industrial Applications
