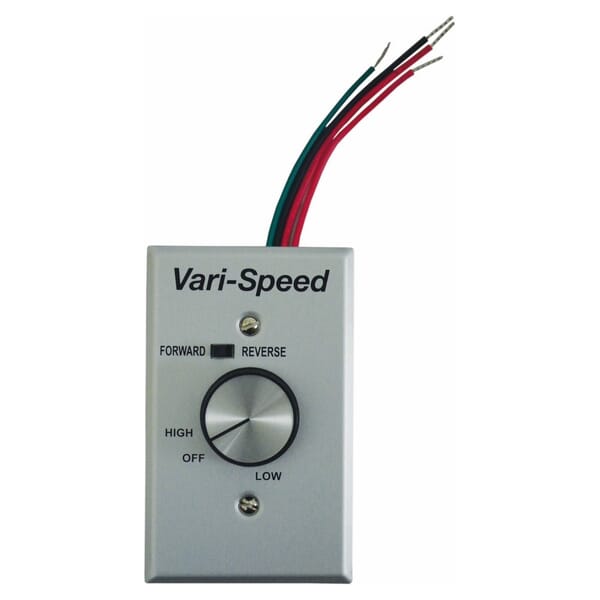

TPI KBWC-15SK Solid-State Fan Speed Control, 120 V AC, 10 A, Import
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsTPI KBWC-15SK Solid-State Fan Speed Control, 120 V AC, 10 A, Import
ManufacturerTPI
Part #633486668
MFG #KBWC-15SK
UPC #686334866682
TPI Fan Speed Control, Solid-State, Series: KBWC, 120 V AC, 10 A, For Use With: Model IHR-56R Ceiling Fan, 4-1/2 in Width, 2.55 in Depth, 4-1/2 in Height, Import
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â TPI CorporationAmperage Rating:Â 10 ACountry of Origin:Â CNDepth:Â 2.55 inDomestic/Import:Â ImportHeight:Â 4-1/2 inManufacturer Name:Â TPI CorporationSeries:Â KBWCSuitable For Use With:Â Model IHR-56R Ceiling FanType:Â Solid-StateVoltage Rating:Â 120 V AC, 120 VACWidth:Â 4-1/2 in
Mounting Kit
- Important features, such as RFI filter, minimum speed trimpot and built-in ON/OFF line switch are standard
- All models are designed to be mounted into a standard 2 x 4 in electrical wall box
- For use with shaded pole, permanent split capacitor (PSC) and universal motors
- Wall mounting
- 1-3 ceiling fans reversing switch and speed control
- The KBWC Series is a comprehensive line of motor speed controls for air-moving applications that utilize Shaded Pole, Permanent Split Capacitor (PSC) and AC/DC motors. These economical speed controls are designed to replace obsolete, tapped winding or reactive methods of speed control. The full-wave phase control circuitry minimizes power loss, thereby reducing energy requirements. The controls provide infinitely variable speed adjustment which allows the end-user to select the desired level of air volume. These models cover a wide range of current ratings (2.5 to 15 A AC) and voltage ratings (115, 230, 277 VAC).
- Mounting Kit
- PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
- Limited
- Manufacturer Name:Â TPI CorporationAmperage Rating:Â 10 ACountry of Origin:Â CNDepth:Â 2.55 inDomestic/Import:Â ImportHeight:Â 4-1/2 inManufacturer Name:Â TPI CorporationSeries:Â KBWCSuitable For Use With:Â Model IHR-56R Ceiling FanType:Â Solid-StateVoltage Rating:Â 120 V AC, 120 VACWidth:Â 4-1/2 in
Mounting Kit
- Important features, such as RFI filter, minimum speed trimpot and built-in ON/OFF line switch are standard
- All models are designed to be mounted into a standard 2 x 4 in electrical wall box
- For use with shaded pole, permanent split capacitor (PSC) and universal motors
- Wall mounting
- 1-3 ceiling fans reversing switch and speed control
- The KBWC Series is a comprehensive line of motor speed controls for air-moving applications that utilize Shaded Pole, Permanent Split Capacitor (PSC) and AC/DC motors. These economical speed controls are designed to replace obsolete, tapped winding or reactive methods of speed control. The full-wave phase control circuitry minimizes power loss, thereby reducing energy requirements. The controls provide infinitely variable speed adjustment which allows the end-user to select the desired level of air volume. These models cover a wide range of current ratings (2.5 to 15 A AC) and voltage ratings (115, 230, 277 VAC).
- Mounting Kit
- PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
- Limited
