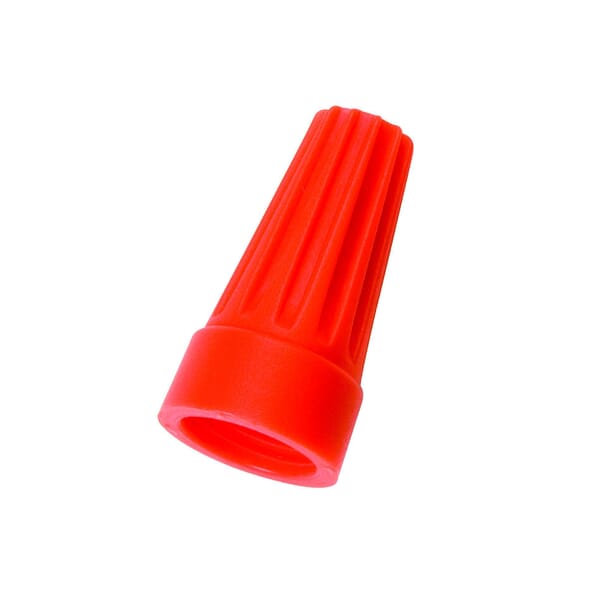

BUCHANAN WIRETWIST WT3-1 Wire Connector, Positive Grip Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid/Stranded Wire, Polypropylene

ManufacturerBUCHANAN

Part #178961004

MFG #WT3-1

UPC #781789610047

BUCHANAN WIRETWIST Wire Connector, Series: WT3, Positive Grip Shell Style, Fixed/Square Wire Spring, Solid/Stranded Wire, 22 to 14 AWG Wire, 600 VAC, Specifications: 3/8 in Solid, 5/16 in Stranded Wire Strip, 3 to 5 Conductors, Min 18 to 2 AWG, Max 14 to 2 AWG Combination Size, 221 deg F, Polypropylene, Orange, 0.45 in Dia x 0.89 in H Dimensions

$10.08

/ BX

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Ideal Industries

Color: Orange

Country of Origin: US

Dimensions: 0.45 in Dia x 0.89 in H

Manufacturer Name: Ideal Industries

Material: Polypropylene

Series: WT3

Shell Style: Positive Grip, Ribbed/Twist-On

Specifications: 3/8 in Solid, 5/16 in Stranded Wire Strip, 3 to 5 Conductors, Min 18 to 2 AWG, Max 14 to 2 AWG Combination Size

Spring Type: Fixed/Square Wire

Temperature Rating: 221 deg F

Voltage Rating: 600 VAC

Wire Size: 22 to 14 AWG

Wire Type: Solid/Stranded

Ribbed cap provides positive grip for fast, easy installation
Fixed, square wire spring threads itself creating a secure pressure grip
Deep, wide-throated skirt protects against flash-over and turned-back strands for maximum dielectric protection
Suitable for use with ACAM, Wire-Nut wire connector sockets tools

WIRETWIST Wire Connectors offer an economical connector that brings a lot of value in comfort and performance. The fixed, live-action, square-wire spring threads itself as it draws wires into the connector, creating a secure pressure grip. The rugged, thermoplastic shell withstands extreme environments. The deep, wide-throated skirt protects against flashover and turned back strands providing excellent dielectric protection. The Combination WIRETWIST/WINGTWIST Kit offers one easy solution for all your twist-on wiring needs. This 620-piece kit features an assortment of all models and sizes of WIRETWIST and WINGTWIST Wire Connectors in a handy plastic storage case. Perfect for maintenance and small project applications where several different wire connectors are required.

RoHS Compliant|C22.2 No. 188|UL 94V-2 Flammability Rating|UL 486C Listed

Manufacturer Name: Ideal Industries

Color: Orange

Country of Origin: US

Dimensions: 0.45 in Dia x 0.89 in H

Manufacturer Name: Ideal Industries

Material: Polypropylene

Series: WT3

Shell Style: Positive Grip, Ribbed/Twist-On

Specifications: 3/8 in Solid, 5/16 in Stranded Wire Strip, 3 to 5 Conductors, Min 18 to 2 AWG, Max 14 to 2 AWG Combination Size

Spring Type: Fixed/Square Wire

Temperature Rating: 221 deg F

Voltage Rating: 600 VAC

Wire Size: 22 to 14 AWG

Wire Type: Solid/Stranded

Ribbed cap provides positive grip for fast, easy installation
Fixed, square wire spring threads itself creating a secure pressure grip
Deep, wide-throated skirt protects against flash-over and turned-back strands for maximum dielectric protection
Suitable for use with ACAM, Wire-Nut wire connector sockets tools

WIRETWIST Wire Connectors offer an economical connector that brings a lot of value in comfort and performance. The fixed, live-action, square-wire spring threads itself as it draws wires into the connector, creating a secure pressure grip. The rugged, thermoplastic shell withstands extreme environments. The deep, wide-throated skirt protects against flashover and turned back strands providing excellent dielectric protection. The Combination WIRETWIST/WINGTWIST Kit offers one easy solution for all your twist-on wiring needs. This 620-piece kit features an assortment of all models and sizes of WIRETWIST and WINGTWIST Wire Connectors in a handy plastic storage case. Perfect for maintenance and small project applications where several different wire connectors are required.

RoHS Compliant|C22.2 No. 188|UL 94V-2 Flammability Rating|UL 486C Listed
