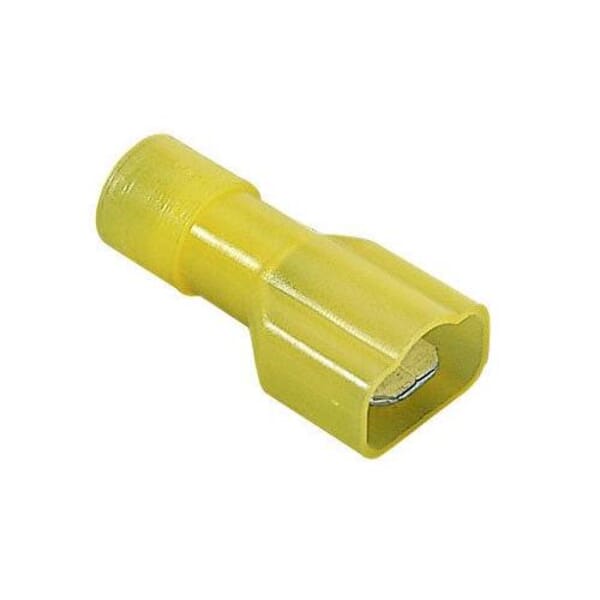

IDEAL 83-9791 Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass/Nylon, Yellow

Product Line: IDEAL

MFG #: 83-9791

Your Price

$79.53 / BX

Pack: EACH

Qty

Details

Part#325049069

Manufacturer:Ideal Industries

UPC:783250490691

MFG #83-9791

IDEAL Female Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 VAC, Specifications: 0.244 in Dia Insulation, 221 deg F, Brass/Nylon, Yellow, TiN Plated, 0.945 in L x 0.26 in W Dimensions, Fully Insulated

Specifications

Barrel Type

Shouldered

Color

Yellow

Conductor Size

12 to 10 AWG

Country of Origin

Dimensions

0.945 in L x 0.26 in W

Finish

Tin Plated

Insulated

Fully Insulated

Manufacturer Name

Ideal Industries

Material

Brass/Nylon

Specifications

0.244 in Dia Insulation

Tab Size

0.25 x 0.032 in

Temperature Rating

221 deg F

Terminal Type

Crimp

Voltage Rating

300 VAC

Item Features

Butted seam-construction prevents splitting under maximum pressure
Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
Tin plated brass construction for corrosion-resistance
Shouldered barrel insulation quickly positions terminal for proper crimping
Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
Brazed or butted seams prevent splitting
Funnel entry insulators
Beveled barrel openings provide easy wire entry
Clearly marked wire and stud ranges
Color coded insulation

Standards

RoHS Compliant|cUL Listed
