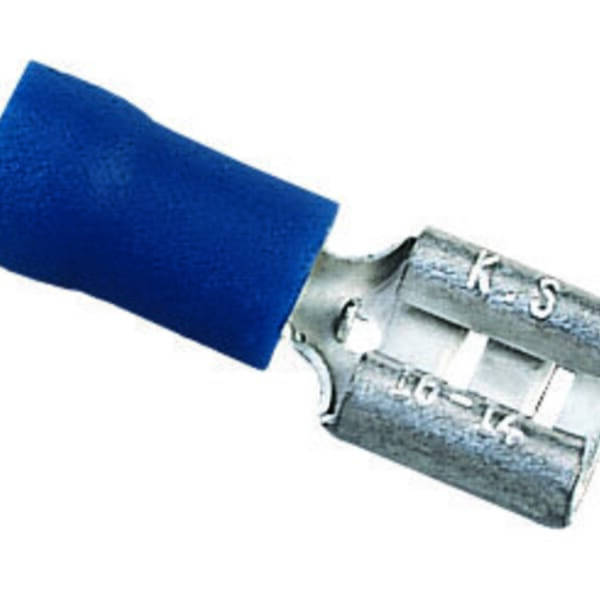

IDEAL 83-9581 Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Blue
Product Line: IDEAL
MFG #: 83-9581
Your Price
$45.58Â /Â BX
Pack:Â EACH
IDEAL 83-9581 Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Brass, Blue
Description
IDEAL Female Disconnect Terminal, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Shouldered Barrel, Crimp Terminal, 300 VAC, Specifications: 0.185 in Dia Insulation, 75 deg C, Brass, Blue, TiN Plated, 0.819 in L x 0.26 in W Dimensions, Insulated
Product Number: 325049063
Manufacturer: IDEAL
Prasdsadice:
$45.58Â /Â BX
Pack:Â EACH
MFG #: 83-9581
Manufacturer: Ideal Industries
UPC: 783250490639
Specifications
Barrel Type: Shouldered
Color: Blue
Conductor Size: 16 to 14 AWG
Dimensions: 0.819 in L x 0.26 in W
Finish: Tin Plated
Insulated: Insulated
Material: Brass
Specifications: 0.185 in Dia Insulation
Tab Size: 0.25 x 0.032 in
Temperature Rating: 75 deg C
Terminal Type: Crimp
Voltage Rating: 300 VAC
Item Features
- Butted seam-construction prevents splitting under maximum pressure
- Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
- Tin plated brass construction for corrosion-resistance
- Shouldered barrel insulation quickly positions terminal for proper crimping
- Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
- Brazed or butted seams prevent splitting
- Funnel entry insulators
- Beveled barrel openings provide easy wire entry
- Clearly marked wire and stud ranges
- Color coded insulation
