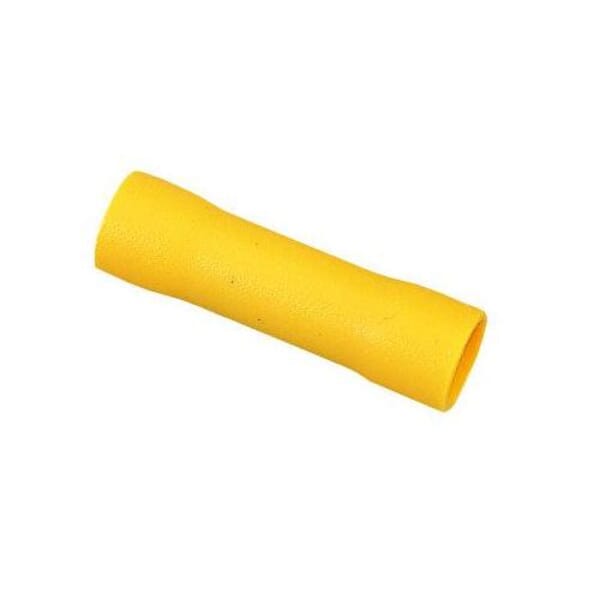

IDEAL 83-9301 Insulated Vinyl Butt Splice, 12 to 10 AWG Conductor, 1.043 in L, Shouldered Barrel, Brass, Yellow

Product Line: IDEAL

MFG #: 83-9301

Your Price

$56.13 / BX

Pack: EACH

Qty

Details

Part#325049046

Manufacturer:Ideal Industries

UPC:783250490462

MFG #83-9301

IDEAL Butt Splice, Insulated Vinyl, 12 to 10 AWG Conductor, 1.043 in Length, Shouldered Barrel, 0.134 in ID Barrel, 600 VAC, 75 deg C, Brass, Yellow, Tin Plated

Specifications

Barrel Size

0.134 in ID

Barrel Type

Shouldered

Color

Yellow

Conductor Size

12 to 10 AWG

Country of Origin

Finish

Tin Plated

Length

1.043 in

Manufacturer Name

Ideal Industries

Material

Brass

Temperature Rating

75 deg C

Type

Insulated Vinyl

Voltage Rating

600 VAC

Item Features

Butted seam-construction prevents splitting under maximum pressure
Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
Tin plated brass construction for corrosion resistance
Shouldered barrel insulation quickly positions terminal for proper crimping
Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
Brazed or butted seams prevent splitting
Funnel entry insulators
Beveled barrel openings provide easy wire entry
Clearly marked wire and stud ranges
Color coded insulation

Standards

RoHS Compliant|CUL Listed
