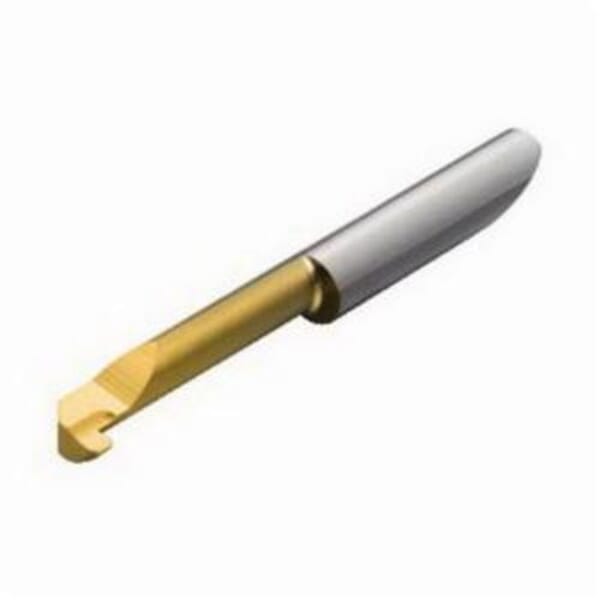

Sandvik Coromant 5726319 CoroTurn XS Grooving Insert, 1.17 mm W Groove, 7.2 mm Dia Min Hole, 30 mm Max Hole Depth, Right Hand Cutting, Material Grade: M, N, P, S

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5726319 CoroTurn XS Grooving Insert, 1.17 mm W Groove, 7.2 mm Dia Min Hole, 30 mm Max Hole Depth, Right Hand Cutting, Material Grade: M, N, P, S

ManufacturerSandvik Coromant

Part #826210465

MFG #5726319

Sandvik Coromant Grooving Insert, 1.17 mm Groove Width, 7.2 mm Minimum Hole Dia, Right Hand Cutting, 55.28 mm Overall Length, 30 mm Maximum Hole Depth, 2.5 mm Projection, 7 mm Shank Dia, Solid Carbide, PVD-TiAlN/TiN Coated, Material Grade: M, N, P, S

$82.15

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: GB

Cutting Direction: Right Hand

Finish: PVD-TiAlN/TiN Coated

Groove Width: 1.17 mm

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Material Grade: M, N, P, S

Maximum Hole Depth: 30 mm

Minimum Hole Diameter: 7.2 mm

Overall Length: 55.28 mm

Projection: 2.5 mm

Series: CoroTurn XS

Shank Diameter: 7 mm

Precision ground tools are perfect when producing small internal features with high-quality
The large variety of adapters fits most types of machines
CoroTurn XS is a system for solid carbide tools designed for exact cutting edge position, enabling high precision and repeatability in turning machining
Optimized for machining small, high-quality features
High precision and repeatability
Reliable and easy-to use clamping system
Solid carbide boring bar fits precisely into the adapter with a locating pin
Rigid clamping with increased stability with collet clamped adapters
Longer tool life by minimized micro vibrations
Clamping nut ensures easy change of cutting tool

For internal turning, grooving, profiling and threading in all materials, face grooving and finishing applications

SDS

Manufacturer Name: Sandvik Coromant

Country of Origin: GB

Cutting Direction: Right Hand

Finish: PVD-TiAlN/TiN Coated

Groove Width: 1.17 mm

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Material Grade: M, N, P, S

Maximum Hole Depth: 30 mm

Minimum Hole Diameter: 7.2 mm

Overall Length: 55.28 mm

Projection: 2.5 mm

Series: CoroTurn XS

Shank Diameter: 7 mm

Precision ground tools are perfect when producing small internal features with high-quality
The large variety of adapters fits most types of machines
CoroTurn XS is a system for solid carbide tools designed for exact cutting edge position, enabling high precision and repeatability in turning machining
Optimized for machining small, high-quality features
High precision and repeatability
Reliable and easy-to use clamping system
Solid carbide boring bar fits precisely into the adapter with a locating pin
Rigid clamping with increased stability with collet clamped adapters
Longer tool life by minimized micro vibrations
Clamping nut ensures easy change of cutting tool

For internal turning, grooving, profiling and threading in all materials, face grooving and finishing applications

SDS
