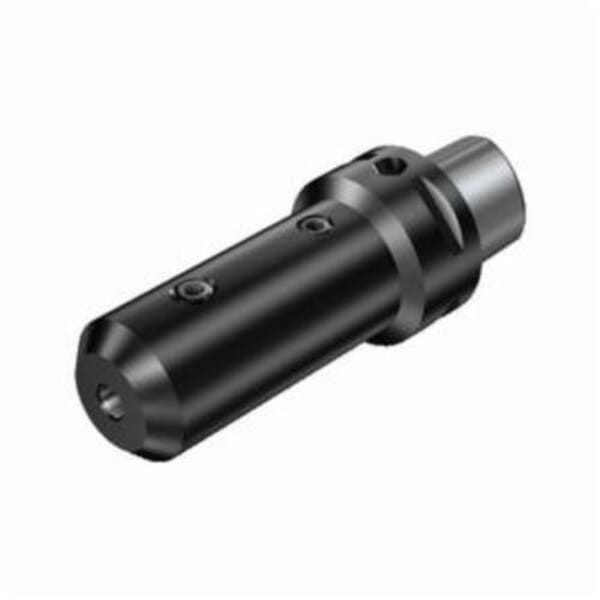

Sandvik Coromant 5728943 Coromant Capto to Whistle Notch Adapter, Segment and Bolt Clamping System, 1.496 to 1.8897 in Body Dia Workpiece Side

Product Line: Sandvik Coromant

MFG #: 5728943

Your Price

$733.65 / EA

Pack: 1/PK

Qty

Details

Part#826228943

Manufacturer:Sandvik Coromant

MFG #5728943

Sandvik Coromant Adapter, Coromant Capto to Whistle Notch, 1.496 to 1.8897 in Body Diameter Workpiece Side, 3.1496 in Projection, 4.3307 in Overall Length, ANSI Code: C5-391.21-16 080, ISO Code: C5-391.21-16 080, System Size Machine Side: C5, 11.0634 ft-lb Torque, Segment and Bolt Clamping System

Specifications

ANSI Code

C5-391.21-16 080

Body Diameter Workpiece Side

1.496 to 1.8897 in

Clamping System

Segment and Bolt

Country of Origin

ISO Code

C5-391.21-16 080

Manufacturer Name

Sandvik Coromant

Overall Length

4.3307 in

Projection

3.1496 in

System Size Machine Side

Torque Rating

11.0634 ft-lb

Type

Coromant Capto to Whistle Notch

Includes

5757357 Key, 5758336 Key, 5758521 Screw, 5758854 Screw, 5762073 Plug and 5762986 Screw

Item Features

Bolt and segment clamping machine side adaptive interface
Balanced by design
0 - 45 deg body half taper
Steel body
Axial concentric and radial coolant entry
20 bar coolant
Axial concentric coolant exit
Cx-391.21 (14) tool style
50 mm Dia machine side connection
16 mm Dia workpiece side connection
20 life cycle state

Item Includes

5757357 Key, 5758336 Key, 5758521 Screw, 5758854 Screw, 5762073 Plug and 5762986 Screw
