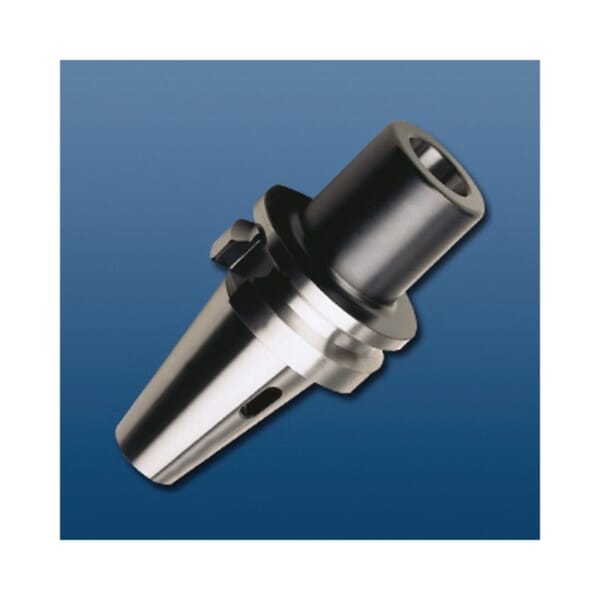

Haimer 40.580.04 Short Taper Adapter, #4 MT Dia Adapter/Shank, Tapered Shank, BT40 Modular Connection, #4 MT Taper, 48 mm Dia Nose, 95 mm Projection

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 40.580.04 Short Taper Adapter, #4 MT Dia Adapter/Shank, Tapered Shank, BT40 Modular Connection, #4 MT Taper, 48 mm Dia Nose, 95 mm Projection

ManufacturerHaimer

Part #129500570

MFG #40.580.04

UPC #4034221004024

Haimer Taper Adapter, Short, BT40 Modular Connection, #4 MT Diameter Adapter/Shank, Tapered Shank, #4 MT Taper, 48 mm Body Diameter Workpiece Side, 48 mm Diameter Nose, 95 mm Projection, System Size Machine Side: BT40

$246.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Adapter/Shank Diameter: #4 MT

Body Diameter Workpiece Side: 48 mm

Modular Connection Size: BT40

Nose Diameter: 48 mm

Projection: 95 mm

Shank Type: Tapered

System Size Machine Side: BT40

Taper Size: #4 MT

Type: Short

AT3 taper tolerance
Balanced to G6.3 at 8000 rpm
All functional surfaces precision ground
For holding tools with morse tapers with tang according to DIN 228-11 form B

JIS B 6339

For holding tools with morse taper with tang
