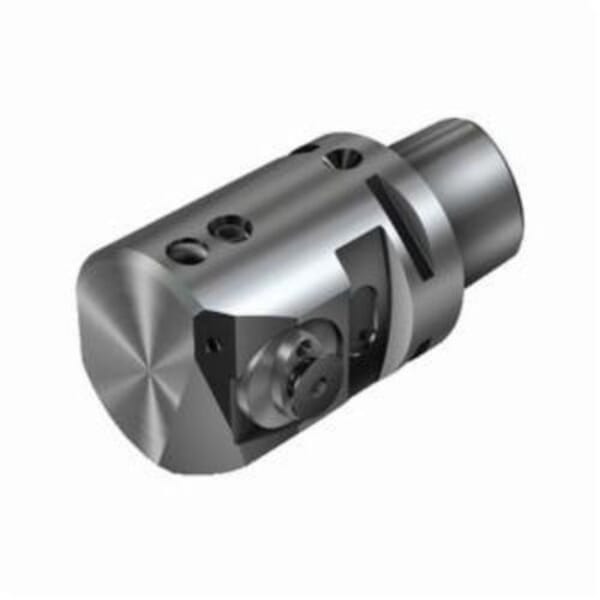

Sandvik Coromant 5727130 Right Hand Boring Adapter, 1.26 in Shank Connection, Coromant Capto x CoroBore 825 Shank, C3 Taper, C3 x SZ A Modular System, 0.354 in Projection
Product Line: Sandvik Coromant
MFG #: 5727130
Your Price
Sandvik Coromant 5727130 Right Hand Boring Adapter, 1.26 in Shank Connection, Coromant Capto x CoroBore 825 Shank, C3 Taper, C3 x SZ A Modular System, 0.354 in Projection
Description
Sandvik Coromant Boring Adapter, Right Hand, C3 x SZ A Modular System Size, Coromant Capto x CoroBore 825 Shank, C3 Taper, 0.354 in Projection, 5.2559 in Overall Length, 1.26 in Overall Dia, 1.26 in Shank Connection, ANSI Code: C3-R825A-AAB106A, ISO Code: C3-R825A-AAB106A, System Size Machine Side: C3, Yes Through Coolant (Yes/No)
Product Number: 826227130
Manufacturer: Sandvik Coromant
Prasdsadice:
MFG #: 5727130
Manufacturer: Sandvik Coromant
Specifications
ANSI Code: C3-R825A-AAB106A
Country of Origin: DE
ISO Code: C3-R825A-AAB106A
Manufacturer Name: Sandvik Coromant
Modular System Size: C3 x SZ A
Overall Diameter: 1.26 in
Overall Length: 5.2559 in
Projection: 0.354 in
Shank Connection Size: 1.26 in
Shank Type: Coromant Capto x CoroBore 825
System Size Machine Side: C3
Taper Size: C3
Through Coolant (Yes/No): Yes
Type: Right Hand
Item Includes
5715047 Coolant Screw, 5763482 Locking Screw and 5764035 Coolant Screw
