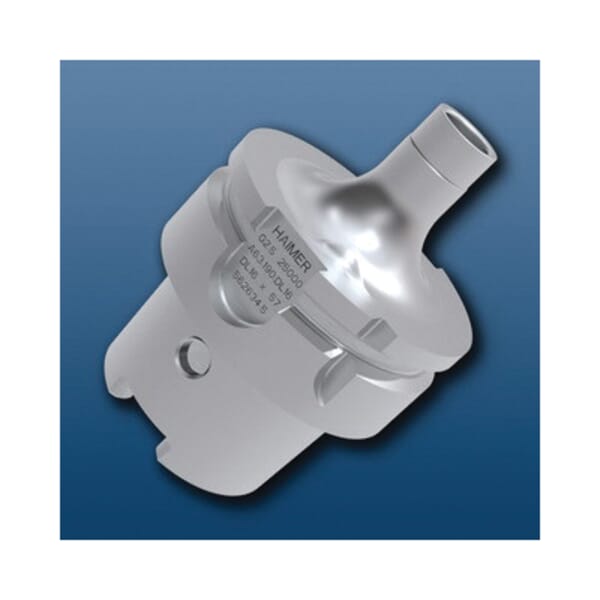

Haimer Duo-Lock A63.190.DL10 Short Monoblock Holder, 10 mm Dia Hole, HSK63A Taper, 9.6 mm Dia Nose, 48 mm Projection

ManufacturerHaimer

Part #129503297

MFG #A63.190.DL10

Haimer Duo-Lock Monoblock Holder, Short, 10 mm Hole Dia, HSK63A Taper, 9.6 mm Nose Dia, 48 mm Projection, DL10 Shank Connection

$618.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Hole Diameter: 10 mm

Nose Diameter: 9.6 mm

Projection: 48 mm

Shank Connection Size: DL10

Taper Size: HSK63A

Type: Short

Superior rigidity of the interface allows for greater depths of cut up to 1.5xD in full slotting
The most robust modular system ever developed
FEA based design ensures that stress levels in the interface remain below critical values even at elevated loads
The double cone surfaces, combined with an additional third supporting pilot, delivers high stiffness and accuracy
Chuck body fine balanced G2.5 at 25000 rpm or ULess than 1 gmm
All functional surfaces fine machined
More accurate than DIN
Perfectly suitable for milling with short overhang
All holders include inner coolant
Hardened 54-2 HRC

DIN 69893-1

For direct clamping of the Duo-Lock milling head
