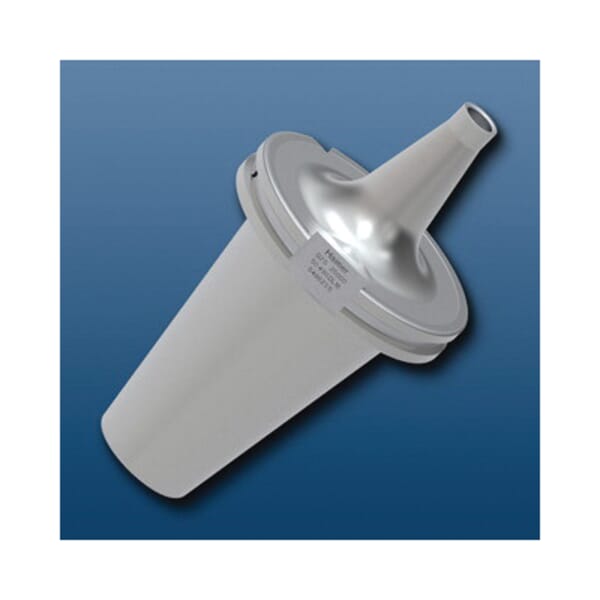

Haimer 50.490.DL20 Short Monoblock Holder, 20 mm Dia Hole, SK50 Taper, 19.3 mm Dia Nose, 80 mm Projection

ManufacturerHaimer

Part #129501250

MFG #50.490.DL20

Haimer Monoblock Holder, Short, 20 mm Hole Dia, SK50 Taper, 19.3 mm Nose Dia, 80 mm Projection, DL20 Shank Connection

$1,154.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Hole Diameter: 20 mm

Nose Diameter: 19.3 mm

Projection: 80 mm

Shank Connection Size: DL20

Taper Size: SK50

Type: Short

Superior rigidity of the interface allows for greater depths of cut up to 1.5xD in full slotting
The most robust modular system ever developed
FEA based design ensures that stress levels in the interface remain below critical values even at elevated loads
The double cone surfaces, combined with an additional third supporting pilot, delivers high stiffness and accuracy
Chuck body fine balanced G2.5 at 25000 rpm or ULess than 1 gmm
All functional surfaces fine machined
AT3 taper tolerance
Coolant supply form ADB
Perfectly suitable for milling and also for grinding Duo-Lock blanks
All holders include inner coolant
Hardened 54-2 HRC
Reinforced geometry

DIN 69871

For direct clamping of the Duo-Lock milling head
