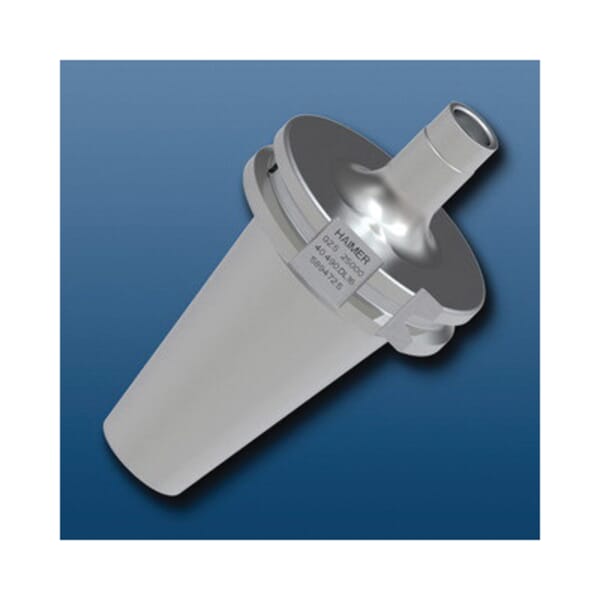

Haimer Duo-Lock 40.490.DL16 Short Monoblock Holder, 16 mm Dia Hole, SK40 Taper, 15.5 mm Dia Nose, 50 mm Projection

Product Line: Haimer

MFG #: 40.490.DL16

Your Price

$767.00 / EA

Qty

Details

Part#129500493

Manufacturer:Haimer

MFG #40.490.DL16

Haimer Duo-Lock Monoblock Holder, Short, 16 mm Hole Dia, SK40 Taper, 15.5 mm Nose Dia, 50 mm Projection, DL16 Shank Connection

Specifications

Country of Origin

Hole Diameter

16 mm

Manufacturer Name

Haimer

Nose Diameter

15.5 mm

Projection

50 mm

Shank Connection Size

DL16

Taper Size

SK40

Type

Short

Application

For direct clamping of the Duo-Lock milling head

Item Features

Superior rigidity of the interface allows for greater depths of cut up to 1.5xD in full slotting
The most robust modular system ever developed
FEA based design ensures that stress levels in the interface remain below critical values even at elevated loads
The double cone surfaces, combined with an additional third supporting pilot, delivers high stiffness and accuracy
Chuck body fine balanced G2.5 at 25000 rpm or ULess than 1 gmm
All functional surfaces fine machined
AT3 taper tolerance
Coolant supply form ADB
Perfectly suitable for milling with short overhang
All holders include inner coolant
Hardened 54-2 HRC

Standards

DIN 69871

Documents

Catalog

Haimer Duo-Lock 40.490.DL16 Short Monoblock Holder, 16 mm Dia Hole, SK40 Taper, 15.5 mm Dia Nose, 50 mm Projection

Description

Haimer Duo-Lock Monoblock Holder, Short, 16 mm Hole Dia, SK40 Taper, 15.5 mm Nose Dia, 50 mm Projection, DL16 Shank Connection

Product Number: 129500493

Manufacturer: Haimer

Prasdsadice:

$767.00 / EA

MFG #: 40.490.DL16

Manufacturer: Haimer

Specifications

Country of Origin: DE

Hole Diameter: 16 mm

Manufacturer Name: Haimer

Nose Diameter: 15.5 mm

Projection: 50 mm

Shank Connection Size: DL16

Taper Size: SK40

Type: Short

Standards

DIN 69871
