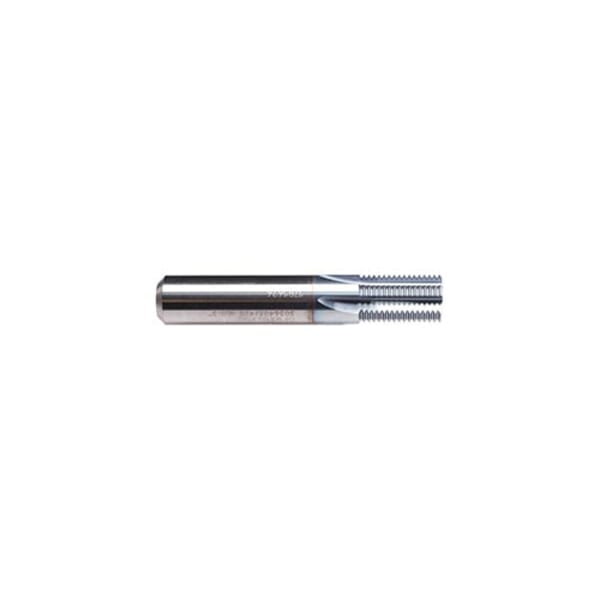

Emuge GF163136.9512 SHUR-THREAD GF163136 GF Style Straight Flute Thread Mill With Axial Through Coolant, M22x1 Coarse/Fine Thread, 90 mm OAL, 5 Flutes, 16 mm Dia Shank

ManufacturerEmuge

Part #826505539

MFG #GF163136.9512

Emuge Straight Flute Thread Mill, GF Style, Series: SHUR-THREAD GF163136, M22x1 Thread, Coarse/Fine Thread, 15.9 mm Diameter Cutting, 25.4 mm Length of Cut, 90 mm Overall Length, 5 Flutes, Weldon Flat Shank, 16 mm Shank Diameter, 1.8898 in Shank Length, Carbide, TiCN Coated

$643.75

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 15.9 mm

Finish: TiCN Coated

Length of Cut: 25.4 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 5

Overall Length: 90 mm

Series: SHUR-THREAD GF163136

Shank Diameter: 16 mm

Shank Length: 1.8898 in

Shank Type: Weldon Flat

Thread Size: M22x1

Thread Type: Coarse/Fine

Type: GF Style

One tool for different thread sizes with standard thread profile (but with one pitch only)
Axial coolant fed design for efficient chip evacuation
TiCN coated for abrasion resistance and extended tool life
To avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 of the thread produced (3/4 for fine pitch threads)

Emuge Straight Flute Thread Mill, GF Style, Series: SHUR-THREAD GF163136, M22x1 Thread, Coarse/Fine Thread, 15.9 mm Diameter Cutting, 25.4 mm Length of Cut, 90 mm Overall Length, 5 Flutes, Weldon Flat Shank, 16 mm Shank Diameter, 1.8898 in Shank Length, Carbide, TiCN Coated

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
