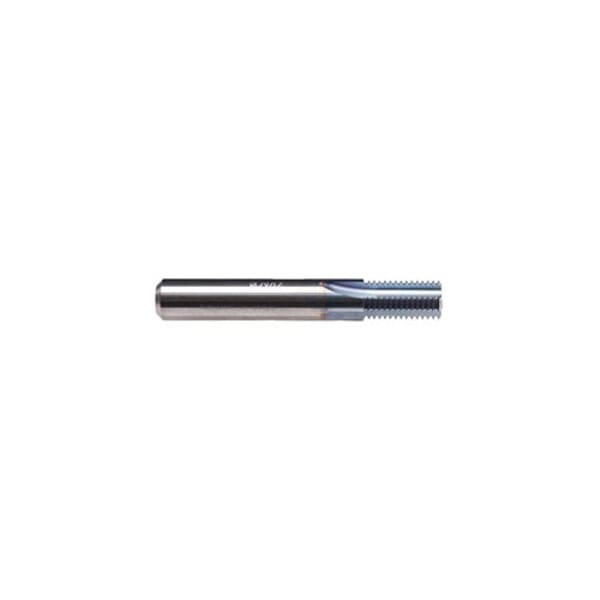

Emuge GF163126.9582 SHUR-THREAD GF163126 GF Style Long Straight Flute Thread Mill With Axial Through Coolant, 11/16-16 UN Thread, 80 mm OAL, 4 Flutes, 12 mm Dia Shank

ManufacturerEmuge

Part #826505526

MFG #GF163126.9582

Emuge Straight Flute Thread Mill, GF Style Long, Series: SHUR-THREAD GF163126, 11/16-16 Thread, UN Thread, 11.9 mm Diameter Cutting, 21.3 mm Length of Cut, 80 mm Overall Length, 4 Flutes, Weldon Flat Shank, 12 mm Shank Diameter, 1.772 in Shank Length, Carbide, TiCN Coated

$501.45

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 11.9 mm

Finish: TiCN Coated

Length of Cut: 21.3 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 80 mm

Series: SHUR-THREAD GF163126

Shank Diameter: 12 mm

Shank Length: 1.772 in

Shank Type: Weldon Flat

Thread Size: 11/16-16

Thread Type: UN

Type: GF Style Long

GF thread mill designed for UNC and UNF threads
One tool for different thread sizes with standard thread profile (but with one pitch only)
Axial coolant fed design for efficient chip evacuation
TiCN coated for abrasion resistance and additional tool life
To avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 of the thread produced (3/4 for fine pitch threads)

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Straight Flute Thread Mill, GF Style Long, Series: SHUR-THREAD GF163126, 11/16-16 Thread, UN Thread, 11.9 mm Diameter Cutting, 21.3 mm Length of Cut, 80 mm Overall Length, 4 Flutes, Weldon Flat Shank, 12 mm Shank Diameter, 1.772 in Shank Length, Carbide, TiCN Coated

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 11.9 mm

Finish: TiCN Coated

Length of Cut: 21.3 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 80 mm

Series: SHUR-THREAD GF163126

Shank Diameter: 12 mm

Shank Length: 1.772 in

Shank Type: Weldon Flat

Thread Size: 11/16-16

Thread Type: UN

Type: GF Style Long

GF thread mill designed for UNC and UNF threads
One tool for different thread sizes with standard thread profile (but with one pitch only)
Axial coolant fed design for efficient chip evacuation
TiCN coated for abrasion resistance and additional tool life
To avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 of the thread produced (3/4 for fine pitch threads)

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
