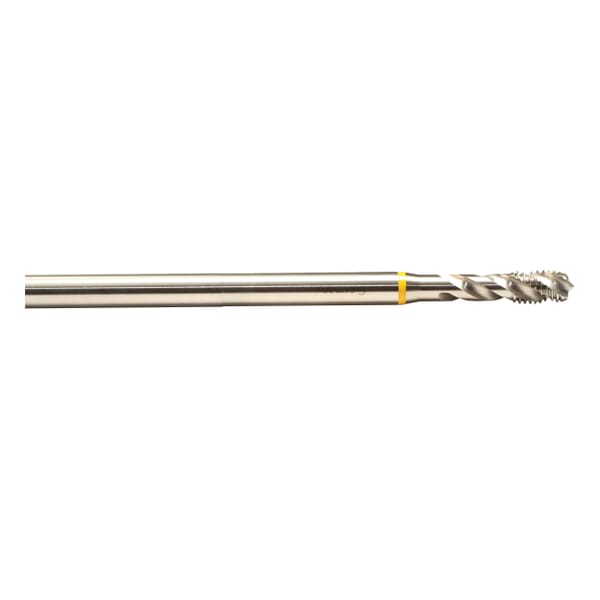

Emuge B2501000.0030 Enorm 1-STEEL-LS B2501000 Form C Fast Spiral Long Reinforced Shank Extension Tap, Modified Bottoming Chamfer, M3x0.5 Thread

ManufacturerEmuge

Part #826503154

MFG #B2501000.0030

Emuge Extension Tap, Form C Fast Spiral Long Reinforced Shank, Series: Enorm 1-STEEL-LS B2501000, Measurement System: Metric, M3x0.5, Coarse, 11 mm Thread Length, 100 mm Overall Length, 3 Flutes, Right Hand Cutting, Class of Fit: 6H, 3.5 mm Shank Dia, 2.5 mm Tap Drill, 2.7 mm Square Size, Modified Bottoming Chamfer, HSS-E, Bright

$80.84

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer: Modified Bottoming

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Bright

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Metric

Number of Flutes: 3

Overall Length: 100 mm

Series: Enorm 1-STEEL-LS B2501000

Shank Diameter: 3.5 mm

Square Size: 2.7 mm

Tap Drill Size: 2.5 mm

Thread Length: 11 mm

Thread Size: M3x0.5

Thread Standard: Coarse

Type: Form C Fast Spiral Long Reinforced Shank

LS designates an extra length design for additional reach
The fast spiral flute (35 deg) provides good chip removal from blind holes
DIN/DIN standard dimensions on overall length and shank size

Emuge Extension Tap, Form C Fast Spiral Long Reinforced Shank, Series: Enorm 1-STEEL-LS B2501000, Measurement System: Metric, M3x0.5, Coarse, 11 mm Thread Length, 100 mm Overall Length, 3 Flutes, Right Hand Cutting, Class of Fit: 6H, 3.5 mm Shank Dia, 2.5 mm Tap Drill, 2.7 mm Square Size, Modified Bottoming Chamfer, HSS-E, Bright

DIN/DIN Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer: Modified Bottoming

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Bright

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Metric

Number of Flutes: 3

Overall Length: 100 mm

Series: Enorm 1-STEEL-LS B2501000

Shank Diameter: 3.5 mm

Square Size: 2.7 mm

Tap Drill Size: 2.5 mm

Thread Length: 11 mm

Thread Size: M3x0.5

Thread Standard: Coarse

Type: Form C Fast Spiral Long Reinforced Shank

LS designates an extra length design for additional reach
The fast spiral flute (35 deg) provides good chip removal from blind holes
DIN/DIN standard dimensions on overall length and shank size

Emuge Extension Tap, Form C Fast Spiral Long Reinforced Shank, Series: Enorm 1-STEEL-LS B2501000, Measurement System: Metric, M3x0.5, Coarse, 11 mm Thread Length, 100 mm Overall Length, 3 Flutes, Right Hand Cutting, Class of Fit: 6H, 3.5 mm Shank Dia, 2.5 mm Tap Drill, 2.7 mm Square Size, Modified Bottoming Chamfer, HSS-E, Bright

DIN/DIN Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
