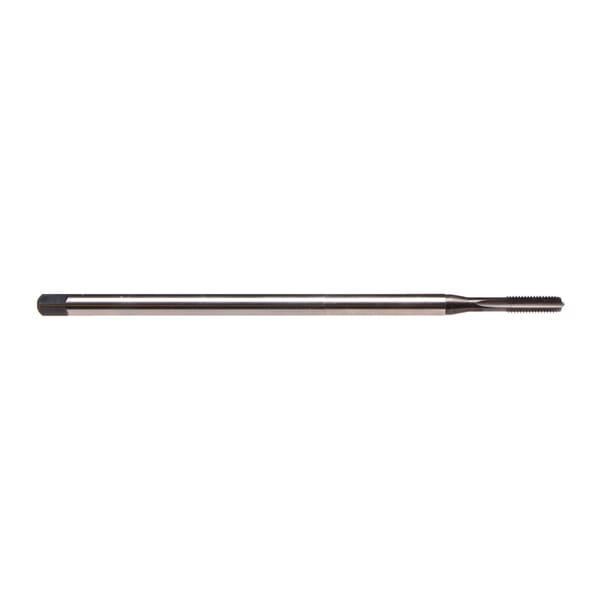

Emuge B2100501.0060 Rekord 1A-H-LS B2100501 Form C Long Reinforced Shank Straight Flute Extension Tap, Modified Bottoming Chamfer, M6x1 Thread

ManufacturerEmuge

Part #826503142

MFG #B2100501.0060

Emuge Extension Tap, Form C Long Reinforced Shank Straight Flute, Series: Rekord 1A-H-LS B2100501, Measurement System: Metric, M6x1, Coarse, 17 mm Thread Length, 80 mm Overall Length, 3 Flutes, Right Hand Cutting, Class of Fit: 6HX, 6 mm Shank Dia, 5 mm Tap Drill, 4.9 mm Square Size, Modified Bottoming Chamfer, HSS-E

$86.26

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer: Modified Bottoming

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Bright

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Metric

Number of Flutes: 3

Overall Length: 80 mm

Series: Rekord 1A-H-LS B2100501

Shank Diameter: 6 mm

Square Size: 4.9 mm

Tap Drill Size: 5 mm

Thread Length: 17 mm

Thread Size: M6x1

Thread Standard: Coarse

Type: Form C Long Reinforced Shank Straight Flute

Rekord A-H LS is a straight flute design best suited for short chipping, high tensile strength materials (cast iron and hardened steels) in through and blind hole applications
LS designates an extra length design for additional reach
DIN/DIN standard dimensions on overall length and shank size

DIN/DIN Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Extension Tap, Form C Long Reinforced Shank Straight Flute, Series: Rekord 1A-H-LS B2100501, Measurement System: Metric, M6x1, Coarse, 17 mm Thread Length, 80 mm Overall Length, 3 Flutes, Right Hand Cutting, Class of Fit: 6HX, 6 mm Shank Dia, 5 mm Tap Drill, 4.9 mm Square Size, Modified Bottoming Chamfer, HSS-E
