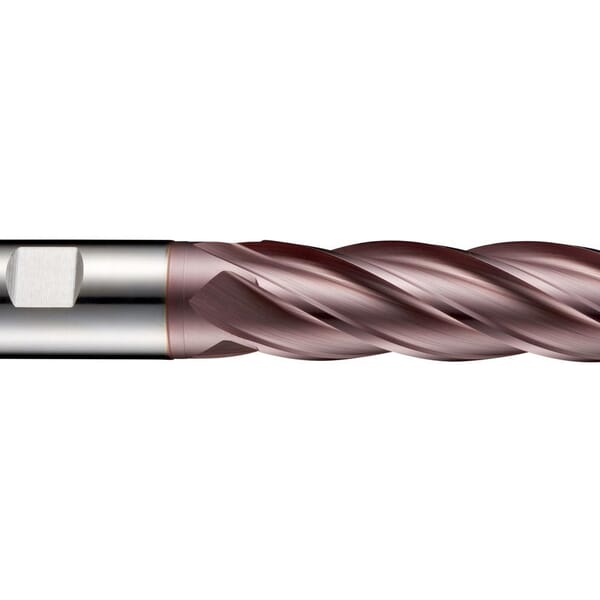

Name: Dormer 5983854 C295 Center Cutting Extra Long Length Regular Helix Single End End Mill, 32 mm Dia Cutter, 106 mm Length of Cut, 6 Flutes, 32 mm Dia Shank, 186 mm OAL, TiCN Coated
Brand: Dormer Pramet
SKU: 7092820
Availability: OutOfStock

Dormer Pramet

Dormer 5983854 C295 Center Cutting Extra Long Length Regular Helix Single End End Mill, 32 mm Dia Cutter, 106 mm Length of Cut, 6 Flutes, 32 mm Dia Shank, 186 mm OAL, TiCN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5983854 C295 Center Cutting Extra Long Length Regular Helix Single End End Mill, 32 mm Dia Cutter, 106 mm Length of Cut, 6 Flutes, 32 mm Dia Shank, 186 mm OAL, TiCN Coated

ManufacturerDormer

Part #816056319

MFG #0356319

UPC #7320760356319

Dormer End Mill, Center Cutting Extra Long Length Regular Helix Single End, Series: C295, 32 mm Diameter Cutter, 186 mm Overall Length, 106 mm Length of Cut, 6 Flutes, Spiral Flute, 32 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, TiCN Coated

$ / EA

QTY

Custom_PDP_Extra_Information_TitleCustom_PDP_Extra_Information_Text

Manufacturer Name: Dormer Pramet

Country of Origin: PL

Cutter Diameter: 32 mm

Cutting Direction: Right Hand

Finish: TiCN Coated

Flute Type: Spiral

Helix Angle: 30 deg

Length of Cut: 106 mm

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 6

Overall Length: 186 mm

Series: C295

Shank Diameter: 32 mm

Shank Type: Weldon Flat

Type: Center Cutting Extra Long Length Regular Helix Single End

Powdered metal (PM) is tougher and more cost effective than solid carbide
It is commonly used on highly abrasive materials including high silicon aluminums
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN, it is commonly used on stainless steels, cast iron and aluminum alloys
12 deg rake angle
+0.058/0.000, K10 tolerance
For use with steel Less than 850 N/mmsq., cast iron, titanium and nickel alloys Less than 900 N/mmsq. and copper alloys

For slotting, ramping, diving and finishing operations

DIN 1835B|DIN 844L|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Manufacturer Name: Dormer Pramet

Country of Origin: PL

Cutter Diameter: 32 mm

Cutting Direction: Right Hand

Finish: TiCN Coated

Flute Type: Spiral

Helix Angle: 30 deg

Length of Cut: 106 mm

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 6

Overall Length: 186 mm

Series: C295

Shank Diameter: 32 mm

Shank Type: Weldon Flat

Type: Center Cutting Extra Long Length Regular Helix Single End

Powdered metal (PM) is tougher and more cost effective than solid carbide
It is commonly used on highly abrasive materials including high silicon aluminums
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN, it is commonly used on stainless steels, cast iron and aluminum alloys
12 deg rake angle
+0.058/0.000, K10 tolerance
For use with steel Less than 850 N/mmsq., cast iron, titanium and nickel alloys Less than 900 N/mmsq. and copper alloys

For slotting, ramping, diving and finishing operations

DIN 1835B|DIN 844L|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog
