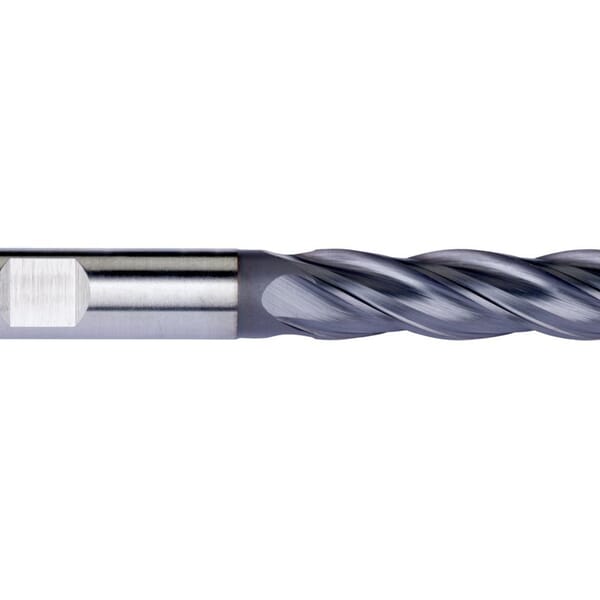

Dormer 5983848 C295 Center Cutting Extra Long Length Regular Helix Single End End Mill, 3 mm Dia Cutter, 12 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 56 mm OAL, TiCN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5983848 C295 Center Cutting Extra Long Length Regular Helix Single End End Mill, 3 mm Dia Cutter, 12 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 56 mm OAL, TiCN Coated

ManufacturerDormer

Part #816056302

MFG #0356302

UPC #7320760356302

Dormer End Mill, Center Cutting Extra Long Length Regular Helix Single End, Series: C295, 3 mm Diameter Cutter, 56 mm Overall Length, 12 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, TiCN Coated

$52.87

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Country of Origin: PL

Cutter Diameter: 3 mm

Cutting Direction: Right Hand

Finish: TiCN Coated

Flute Type: Spiral

Helix Angle: 30 deg

Length of Cut: 12 mm

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 4

Overall Length: 56 mm

Series: C295

Shank Diameter: 6 mm

Shank Type: Weldon Flat

Type: Center Cutting Extra Long Length Regular Helix Single End

Powdered metal (PM) is tougher and more cost effective than solid carbide
It is commonly used on highly abrasive materials including high silicon aluminums
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN, it is commonly used on stainless steels, cast iron and aluminum alloys
12 deg rake angle
+0.058/0.000, K10 tolerance
For use with steel Less than 850 N/mmsq., cast iron, titanium and nickel alloys Less than 900 N/mmsq. and copper alloys

For slotting, ramping, diving and finishing operations

DIN 1835B|DIN 844L|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
