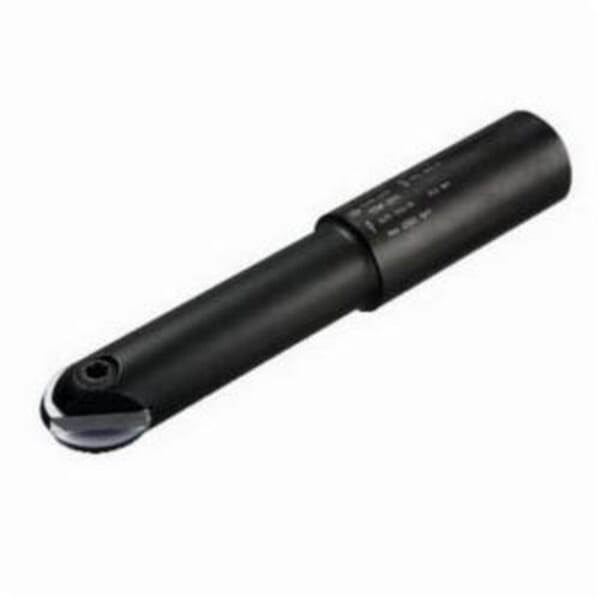

Sandvik Coromant 5738643 CoroMill 216F Ball Nose Milling Cutter, ANSI Code: RA216F-19O19S-075, RA216F..OxxS Insert, 3/4 in Dia Cutting, 0.11 in Max Depth of Cut, Right Hand Cutting, Steel

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5738643 CoroMill 216F Ball Nose Milling Cutter, ANSI Code: RA216F-19O19S-075, RA216F..OxxS Insert, 3/4 in Dia Cutting, 0.11 in Max Depth of Cut, Right Hand Cutting, Steel

ManufacturerSandvik Coromant

Part #826238643

MFG #5738643

Sandvik Coromant Ball Nose Milling Cutter, Series: CoroMill 216F, 3/4 in Cutting Dia, 5.5324 in Overall Length, 0.11 in Maximum Depth of Cut, RA216F..OxxS Insert, 1 Inserts, Insert Compatibility: RA216F-19.., 3/4 in Shank Dia, Cylindrical Shank, ANSI Code: RA216F-19O19S-075, ISO Code: RA216F-19O19S-075, Right Hand Cutting, Steel

$618.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: RA216F-19O19S-075

Country of Origin: FR

Cutting Diameter: 3/4 in

Cutting Direction: Right Hand

Insert Compatibility: RA216F-19..

Insert Style: RA216F..OxxS

ISO Code: RA216F-19O19S-075

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Depth of Cut: 0.11 in

Number of Inserts: 1

Overall Length: 5.5324 in

Series: CoroMill 216F

Shank Diameter: 3/4 in

Shank Type: Cylindrical

20 life cycle state
Cylindrical shank machine side adaptive interface without clamping
17 mm Dia body
0 deg body half taper
Without coolant entry
40 - 60 deg insert screw clamping
0 deg rake orthogonal
71.025 mm L body
S row identifier
140.525 mm L functional
R insert shape
85 deg ramping
40000 r/min
19.05 mm insert seat
5 Nm torque
2 face/peripheral effective cutting edges
RA216F..OxxS tool style
3/4 in insert
2.934 in L neck
90.525 mm overhang

5763206 Insert Screw and 5764146 Key

Catalog

Specification Sheet

Manufacturer Name: Sandvik Coromant

ANSI Code: RA216F-19O19S-075

Country of Origin: FR

Cutting Diameter: 3/4 in

Cutting Direction: Right Hand

Insert Compatibility: RA216F-19..

Insert Style: RA216F..OxxS

ISO Code: RA216F-19O19S-075

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Depth of Cut: 0.11 in

Number of Inserts: 1

Overall Length: 5.5324 in

Series: CoroMill 216F

Shank Diameter: 3/4 in

Shank Type: Cylindrical

20 life cycle state
Cylindrical shank machine side adaptive interface without clamping
17 mm Dia body
0 deg body half taper
Without coolant entry
40 - 60 deg insert screw clamping
0 deg rake orthogonal
71.025 mm L body
S row identifier
140.525 mm L functional
R insert shape
85 deg ramping
40000 r/min
19.05 mm insert seat
5 Nm torque
2 face/peripheral effective cutting edges
RA216F..OxxS tool style
3/4 in insert
2.934 in L neck
90.525 mm overhang

5763206 Insert Screw and 5764146 Key

Catalog

Specification Sheet
