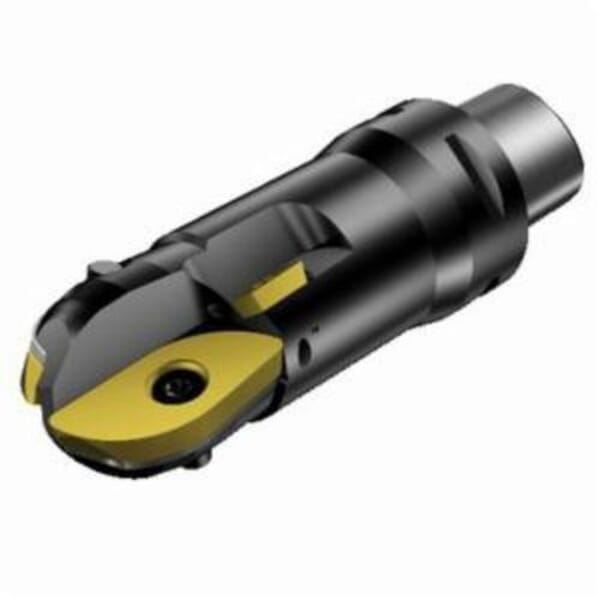

Sandvik Coromant 5738375 CoroMill 216 Ball Nose Milling Cutter, ANSI Code: RA216-51C5-125, RA216..Cx Insert, 2 in Dia Cutting, 1 to 1.791 in Max Depth of Cut, Right Hand Cutting, Steel

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5738375 CoroMill 216 Ball Nose Milling Cutter, ANSI Code: RA216-51C5-125, RA216..Cx Insert, 2 in Dia Cutting, 1 to 1.791 in Max Depth of Cut, Right Hand Cutting, Steel

ManufacturerSandvik Coromant

Part #826238375

MFG #5738375

Sandvik Coromant Ball Nose Milling Cutter, Series: CoroMill 216, 2 in Cutting Dia, 6.1023 in Overall Length, 1 to 1.791 in Maximum Depth of Cut, RA216..Cx Insert, 2 Inserts, Insert Compatibility: RA216-51 07, APMT 160408-M and RA216-51 07, 1.9685 in Shank Dia, ANSI Code: RA216-51C5-125, ISO Code: RA216-51C5-125, Right Hand Cutting, Steel

$1,896.78

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: RA216-51C5-125

Country of Origin: FR

Cutting Diameter: 2 in

Cutting Direction: Right Hand

Insert Compatibility: RA216-51 07, APMT 160408-M and RA216-51 07

Insert Style: RA216..Cx

ISO Code: RA216-51C5-125

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Depth of Cut: 1 to 1.791 in

Number of Inserts: 2

Overall Length: 6.1023 in

Series: CoroMill 216

Shank Diameter: 1.9685 in

20 life cycle state
Segment and bolt machine side adaptive interface
25.4 mm D maximum plunge
46.6 mm Dia body
0 deg body half taper
10 bar coolant
Axial concentric and radial entry
40 - 60 deg insert screw clamping
0 deg rake orthogonal
90 deg cutting edge
95 mm L body
S row identifier
125 mm L functional
A, R insert shape
85 deg ramping
7000 r/min
50.8 mm insert seat
10 Nm torque
2 face/peripheral effective cutting edges
RA216..Cx tool style

5762620 Shim, 5763167 Shim Screw, 5763257 Insert Screw, 5764118 Key and 5764131 Screwdriver

Catalog

Manufacturer Name: Sandvik Coromant

ANSI Code: RA216-51C5-125

Country of Origin: FR

Cutting Diameter: 2 in

Cutting Direction: Right Hand

Insert Compatibility: RA216-51 07, APMT 160408-M and RA216-51 07

Insert Style: RA216..Cx

ISO Code: RA216-51C5-125

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Depth of Cut: 1 to 1.791 in

Number of Inserts: 2

Overall Length: 6.1023 in

Series: CoroMill 216

Shank Diameter: 1.9685 in

20 life cycle state
Segment and bolt machine side adaptive interface
25.4 mm D maximum plunge
46.6 mm Dia body
0 deg body half taper
10 bar coolant
Axial concentric and radial entry
40 - 60 deg insert screw clamping
0 deg rake orthogonal
90 deg cutting edge
95 mm L body
S row identifier
125 mm L functional
A, R insert shape
85 deg ramping
7000 r/min
50.8 mm insert seat
10 Nm torque
2 face/peripheral effective cutting edges
RA216..Cx tool style

5762620 Shim, 5763167 Shim Screw, 5763257 Insert Screw, 5764118 Key and 5764131 Screwdriver

Catalog
