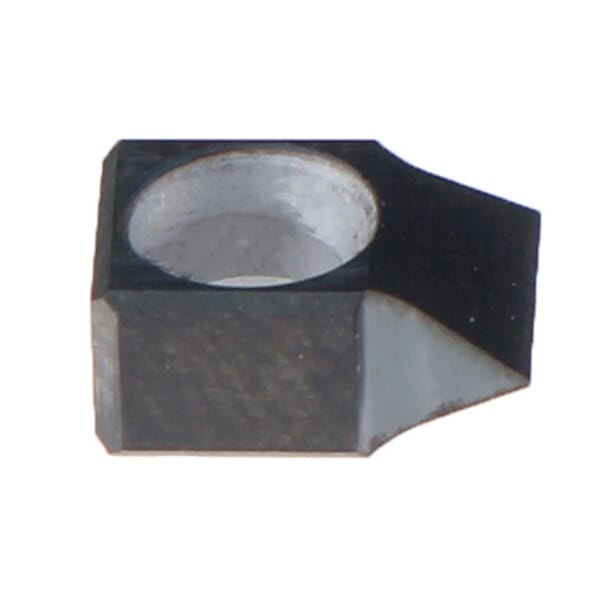

Emuge GF643007.9512 Indexable Threading Insert, GIGANT-IC Insert, 10 to 24 TPI, UN/Coarse/Fine Thread, Left Hand/Right Hand Cutting, Material Grade: K, M, N, P, S

Product Line: Emuge

MFG #: GF643007.9512

Your Price

$77.28 / EA

Pack: 1/PK

Qty

Details

Part#826506137

Manufacturer:Emuge-Franken

MFG #GF643007.9512

Emuge Threading Insert, Indexable, Series: GF643007, GIGANT-IC Insert, 10 Insert, UN/Coarse/Fine Thread Standard, 10 to 24 Threads per Inch, 7 mm Width, 5 mm Length, Left Hand/Right Hand Cutting Direction, Carbide, PVD-TiAlN-T4 Coated, Material Grade: K, M, N, P, S

Specifications

Cutting Direction

Left Hand/Right Hand

Finish

PVD-TiAlN-T4 Coated

Insert Size

Insert Style

GIGANT-IC

Length

5 mm

Material

Carbide

Material Grade

K, M, N, P, S

Series

GF643007

Thread Standard

UN/Coarse/Fine

Threads per Inch

10 to 24

Type

Indexable

Width

7 mm

Application

For internal threads

Item Features

Inserts are rigidly affixed in a solid steel precision pocket, securely fastened with a Torx locking screw
Sub-micro grain carbide inserts with advanced cutting geometry
TiAlN coated option for additional wear resistance in difficult materials
Rotatable carbide inserts with 4 useable cutting edges provide up to 4x more tool life

Standards

DIN 13|ANSI B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
