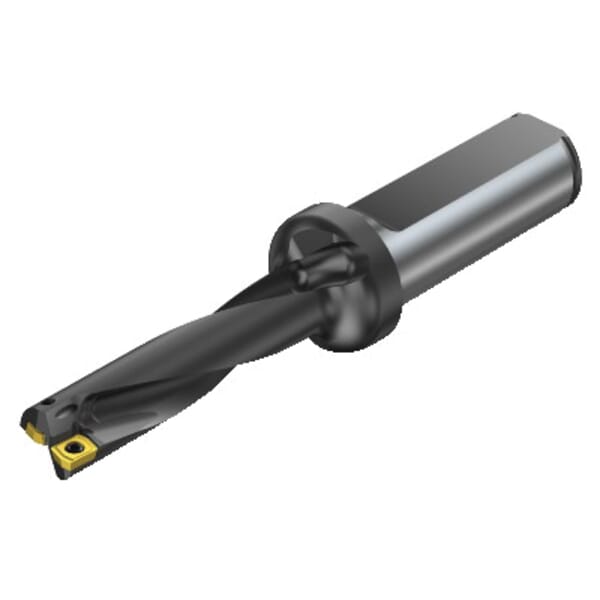

Sandvik Coromant 5723259 CoroDrill 880 Indexable Insert Drill, 1.687 in Drill, 1-1/2 in Modular Connection, 1-1/2 in Dia Shank, 4XD Drill Depth by Dia Ratio, 10.866 in OAL, 6.748 in D Max Drill

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5723259 CoroDrill 880 Indexable Insert Drill, 1.687 in Drill, 1-1/2 in Modular Connection, 1-1/2 in Dia Shank, 4XD Drill Depth by Dia Ratio, 10.866 in OAL, 6.748 in D Max Drill

ManufacturerSandvik Coromant

Part #826223259

MFG #5723259

Sandvik Coromant Indexable Insert Drill, Series: CoroDrill 880, 1.687 in Drill, 1-1/2 in Shank Diameter, 2.7831 in Shank Length, Cylindrical Shank, 1-1/2 in Modular Connection, 6.748 in Maximum Drill Depth, 10.866 in Overall Length, 1.687 in Diameter, 4XD Drill Depth by Diameter Ratio, 2 Drill Inserts, Insert Compatibility: 880-070406H-C-GM (MIIDM), 880-0704W06H-P-GM (MIIDM), 6.916 in Flute Length, Yes Through Coolant

$1,354.15

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Diameter: 1.687 in

Drill Depth by Diameter Ratio: 4XD

Drill Size: 1.687 in

Flute Length: 6.916 in

Insert Compatibility: 880-070406H-C-GM (MIIDM), 880-0704W06H-P-GM (MIIDM)

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 6.748 in

Modular Connection Size: 1-1/2 in

Number of Drill Inserts: 2

Overall Length: 10.866 in

Series: CoroDrill 880

Shank Diameter: 1-1/2 in

Shank Length: 2.7831 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Wiper geometry for best surface finish or higher feed possibilities
Easy identification due to laser marking with drill insert and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized chip channels for accelerated chip evacuation
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life

For helical interpolation, boring, plunging, turning and drilling

ISO 13399

Catalog

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Diameter: 1.687 in

Drill Depth by Diameter Ratio: 4XD

Drill Size: 1.687 in

Flute Length: 6.916 in

Insert Compatibility: 880-070406H-C-GM (MIIDM), 880-0704W06H-P-GM (MIIDM)

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 6.748 in

Modular Connection Size: 1-1/2 in

Number of Drill Inserts: 2

Overall Length: 10.866 in

Series: CoroDrill 880

Shank Diameter: 1-1/2 in

Shank Length: 2.7831 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Wiper geometry for best surface finish or higher feed possibilities
Easy identification due to laser marking with drill insert and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized chip channels for accelerated chip evacuation
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life

For helical interpolation, boring, plunging, turning and drilling

ISO 13399

Catalog
