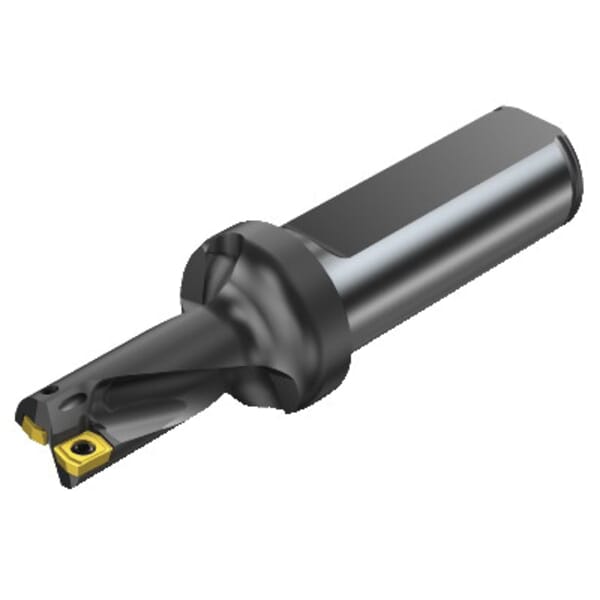

Sandvik Coromant 5723272 CoroDrill 880 Indexable Insert Drill, 1-3/4 in Drill, 1-1/2 in Modular Connection, 1-1/2 in Dia Shank, 2XD Drill Depth by Dia Ratio, 7.663 in OAL, 3-1/2 in D Max Drill

ManufacturerSandvik Coromant

Part #826216254

MFG #5723272

Sandvik Coromant Indexable Insert Drill, Series: CoroDrill 880, 1-3/4 in Drill, 1-1/2 in Shank Dia, 2.7559 in Shank Length, Cylindrical Shank, 1-1/2 in Modular Connection Size, 3-1/2 in Maximum Drill Depth, 7.663 in Overall Length, 1-3/4 in Dia, 2XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-080508H-C-GM (MIIDM), 880-0805W08H-P-GM (MIIDM), 3.675 in Flute Length, Yes Through Coolant (Yes/No)

$1,118.12

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Diameter: 1-3/4 in

Drill Depth by Diameter Ratio: 2XD

Drill Size: 1-3/4 in

Flute Length: 3.675 in

Insert Compatibility: 880-080508H-C-GM (MIIDM), 880-0805W08H-P-GM (MIIDM)

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 3-1/2 in

Modular Connection Size: 1-1/2 in

Number of Drill Inserts: 2

Overall Length: 7.663 in

Series: CoroDrill 880

Shank Diameter: 1-1/2 in

Shank Length: 2.7559 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Wiper geometry for best surface finish or higher feed possibilities
Easy identification due to laser marking with drill insert and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized chip channels for accelerated chip evacuation
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life

For helical interpolation, boring, plunging, turning and drilling

ISO 13399
