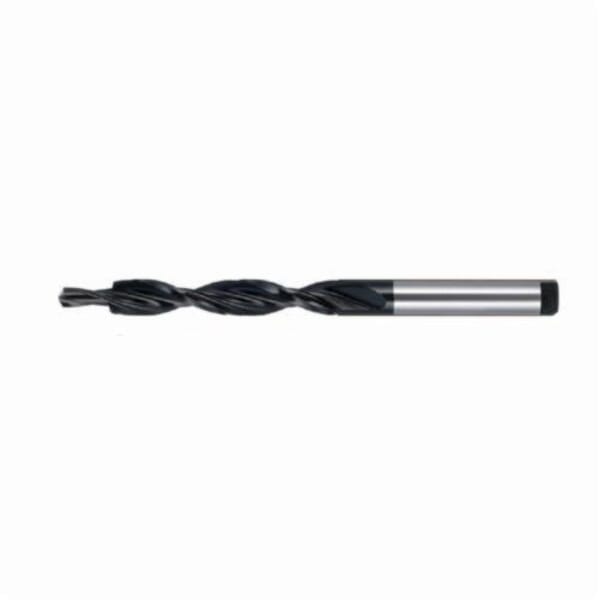

Dormer 5970230 A400 Long Length Subland Step Drill, 10.5 mm Dia Min Hole, 19 mm Dia Max Hole, HSS, 19 mm Shank

ManufacturerDormer

Part #816034309

MFG #0034309

UPC #7320760034309

Dormer Subland Step Drill, Long Length, Series: A400, Metric, 10.5 mm Diameter Minimum Hole, 19 mm Diameter Maximum Hole, 198 mm Overall Length, 4XD Cutting Depth, 23 mm Step Depth, Spiral Flute, 135 mm Flute Length, 19 mm Shank, Straight Shank, 118 deg Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Applicable Materials: Aluminum, Magnesium, Cast Iron, Copper, Nickel, Stainless Steel, Steel Alloy, Titanium and Synthetic Material

$179.47

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Aluminum, Magnesium, Cast Iron, Copper, Nickel, Stainless Steel, Steel Alloy, Titanium and Synthetic Material

Country of Origin: DE

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Metric

Finish: Steam Tempered

Flute Length: 135 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Maximum Hole Diameter: 19 mm

Minimum Hole Diameter: 10.5 mm

Overall Length: 198 mm

Point Angle: 118 deg

Series: A400

Shank Size: 19 mm

Shank Type: Straight

Step Depth: 23 mm

Type: Long Length

No coolant channel
Included Angle 90 deg

For general purpose machining operation

DIN 1809/8374
