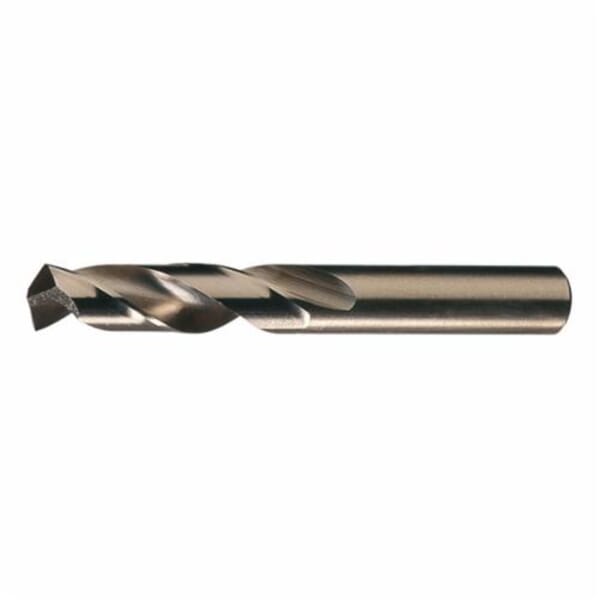

Chicago-Latrobe 50806 559 Heavy Duty Screw Machine Drill, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, M42 HSS-Co 8, Straw

ManufacturerChicago-Latrobe

Part #234750806

MFG #50806

UPC #662355508060

Chicago-Latrobe Screw Machine Drill, Heavy Duty, Series: 559, Imperial, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, 1-15/16 in Overall Length, 3XD Cutting Depth, 2 Flutes, Right Spiral Flute, 15/16 in Flute Length, 9/64 in Dia x 1 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, Straw, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Tool Steel

$3.36

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Greenfield Industries

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: M42 HSS-Co 8

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.1406 in

Drill Size - Fraction: 9/64 in

Finish: Straw

Flute Length: 15/16 in

Flute Type: Right Spiral

Manufacturer Name: Greenfield Industries

Material: M42 HSS-Co 8

Number of Flutes: 2

Overall Length: 1-15/16 in

Point Angle: 135 deg

Point Type: Split

Series: 559

Shank Size: 9/64 in Dia x 1 in L

Shank Type: Straight

Type: Heavy Duty

Heavy duty geometry for drilling tougher materials by hand or machine
Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
P3 split point is self-centering for reduced thrust and easier penetration
Straw finish allows for easy identification of cobalt tools

For drilling tougher materials by hand or machine

Manufacturer Name: Greenfield Industries

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: M42 HSS-Co 8

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.1406 in

Drill Size - Fraction: 9/64 in

Finish: Straw

Flute Length: 15/16 in

Flute Type: Right Spiral

Manufacturer Name: Greenfield Industries

Material: M42 HSS-Co 8

Number of Flutes: 2

Overall Length: 1-15/16 in

Point Angle: 135 deg

Point Type: Split

Series: 559

Shank Size: 9/64 in Dia x 1 in L

Shank Type: Straight

Type: Heavy Duty

Heavy duty geometry for drilling tougher materials by hand or machine
Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates
P3 split point is self-centering for reduced thrust and easier penetration
Straw finish allows for easy identification of cobalt tools

For drilling tougher materials by hand or machine
