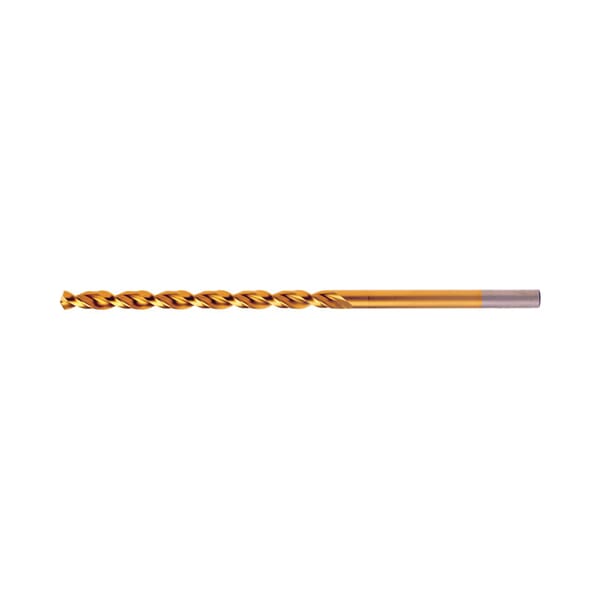

Name: Cleveland Q-CO C16904 2575-TN Tapered Length High Performance Drill, 23/64 in Drill - Fraction, 0.3594 in Drill - Decimal Inch, 6-3/4 in OAL, M42 HSS-Co 8, TiN Coated
Brand: Greenfield Industries
SKU: GREENFIELD_1010374
Availability: OutOfStock

Greenfield Industries

Cleveland Q-CO C16904 2575-TN Tapered Length High Performance Drill, 23/64 in Drill - Fraction, 0.3594 in Drill - Decimal Inch, 6-3/4 in OAL, M42 HSS-Co 8, TiN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Greenfield Industries

Cleveland Q-CO C16904 2575-TN Tapered Length High Performance Drill, 23/64 in Drill - Fraction, 0.3594 in Drill - Decimal Inch, 6-3/4 in OAL, M42 HSS-Co 8, TiN Coated

ManufacturerCleveland

Part #234716904

MFG #C16904

UPC #697334169048

Cleveland Q-CO High Performance Drill, Tapered Length, Series: 2575-TN, 23/64 in Drill - Fraction, 0.3594 in Drill - Decimal Inch, 6-3/4 in Overall Length, 3-7/16 in Cutting Depth, 2 Flutes, Spiral/Wide Land Parabolic Flute, 3-7/16 in Flute Length, 23/64 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, TiN Coated, Applicable Materials: Aluminum, Brass, Cast Iron, High Carbon Steel, Low Carbon Steel, Med Carbon Steel, Nickel Alloy, Plastic, Stainless Steel and Tool Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Greenfield Industries

Country of Origin: US

Cutting Depth: 3-7/16 in

Cutting Direction: Right Hand

Cutting Edge Material: M42 HSS-Co 8

Drill Size - Decimal Inch: 0.3594 in

Drill Size - Fraction: 23/64 in

Finish: TiN Coated

Flute Length: 3-7/16 in

Flute Type: Spiral/Wide Land Parabolic

Manufacturer Name: Greenfield Industries

Material: M42 HSS-Co 8

Number of Flutes: 2

Overall Length: 6-3/4 in

Point Angle: 135 deg

Point Type: Split

Series: 2575-TN

Shank Size: 23/64 in

Shank Type: Straight

Type: Tapered Length

Deliver close hole tolerance for high precision work
Use higher speeds and feeds for increased productivity
TiN (titanium nitride, gold color) coating offers added lubricity and hardness resulting in improved chip flow, significantly improved wear life and better finished hole quality
TiN coatings are used in a broad range of materials, especially ferrous materials, typically at as much as 35% greater drilling speeds than uncoated tools
38 deg helix
-0.001 in drill diameter tolerance
+/-0.125 in overall length tolerance
+/-0.125 in flute length tolerance
+/-5 deg point angle tolerance

For deep hole drilling in a wide range of materials

ANSI Specified

Manufacturer Name: Greenfield Industries

Country of Origin: US

Cutting Depth: 3-7/16 in

Cutting Direction: Right Hand

Cutting Edge Material: M42 HSS-Co 8

Drill Size - Decimal Inch: 0.3594 in

Drill Size - Fraction: 23/64 in

Finish: TiN Coated

Flute Length: 3-7/16 in

Flute Type: Spiral/Wide Land Parabolic

Manufacturer Name: Greenfield Industries

Material: M42 HSS-Co 8

Number of Flutes: 2

Overall Length: 6-3/4 in

Point Angle: 135 deg

Point Type: Split

Series: 2575-TN

Shank Size: 23/64 in

Shank Type: Straight

Type: Tapered Length

Deliver close hole tolerance for high precision work
Use higher speeds and feeds for increased productivity
TiN (titanium nitride, gold color) coating offers added lubricity and hardness resulting in improved chip flow, significantly improved wear life and better finished hole quality
TiN coatings are used in a broad range of materials, especially ferrous materials, typically at as much as 35% greater drilling speeds than uncoated tools
38 deg helix
-0.001 in drill diameter tolerance
+/-0.125 in overall length tolerance
+/-0.125 in flute length tolerance
+/-5 deg point angle tolerance

For deep hole drilling in a wide range of materials

ANSI Specified
