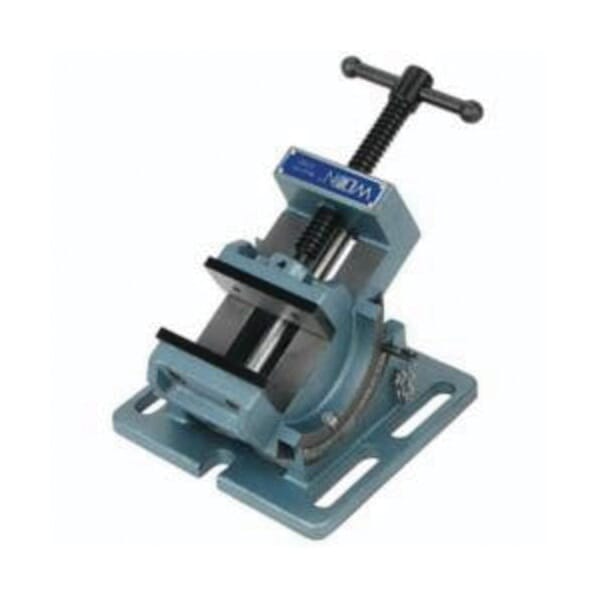

Wilton WL9-11754 Angle Cradle Drill Press Vise, 7-1/4 in L 4-1/2 in H, 4 in Jaw Opening, Cast Iron

ManufacturerWilton

Part #720310046

MFG #11754

UPC #662755100468

Wilton, WL9-11754, Drill Press Vise, Angle Cradle, 7-1/4 in Overall Length, 4-1/2 in Overall Height, V-Groove Jaw, 4 in Jaw Opening, 4 in Jaw Width, Steel Jaw, 1-1/2 in Throat Depth, 6-1/2 in Base Width, 6-1/2 in Base Length, Stationary Base, Cast Iron

$160.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: JPW Industries

Base Length: 6-1/2 in

Base Type: Stationary

Base Width: 6-1/2 in

Country of Origin: CN

Jaw Material: Steel

Jaw Opening: 4 in

Jaw Type: V-Groove

Jaw Width: 4 in

Manufacturer Name: JPW Industries

Material: Cast Iron

Overall Height: 4-1/2 in

Overall Length: 7-1/4 in

Throat Depth: 1-1/2 in

Type: Angle Cradle

All boast hardened V-grooved jaws for clamping round objects vertically and horizontally
Designed for applications including drilling, tapping and reaming requiring angle setup
Cradle design with 90 deg vertical indexing, scaled in 1 deg increments
Side tommy bar allows secure locking at any increment from 0 - 90 deg
Pin hard stops at 0 deg, 15 deg, 30 deg, 45 deg, 60 deg, 75 deg and 90 deg for common applications
Durable construction with fine grain cast iron castings and hardened smear vise jaws
Black oxide coated screw provides consistent clamping pressure and durability
Highly accurate with beds and bases parallel to plus/minus 0.001 in
Base has four 1/2 in shoulder slots for quick, easy positioning on the machine table
Cast iron is a heavy material that is malleable and extremely strong
10.50 in width

Drilling, Tapping and Reaming
